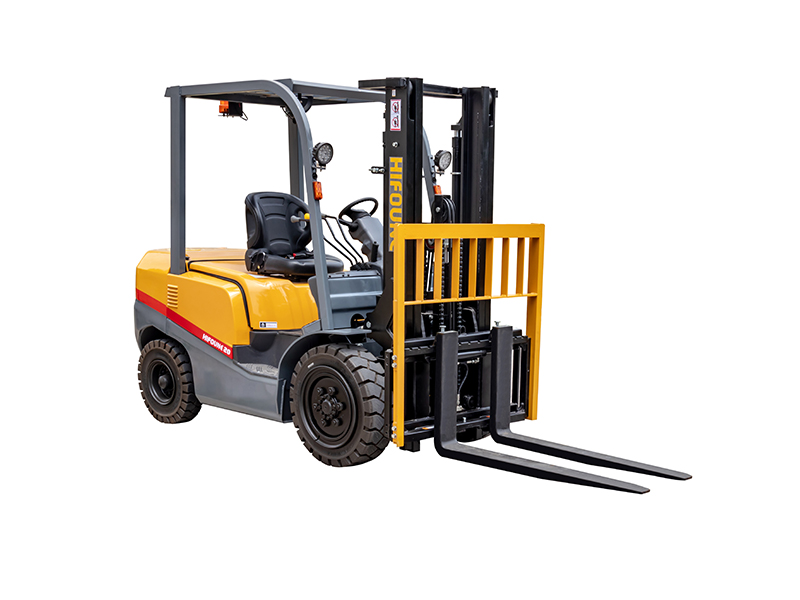

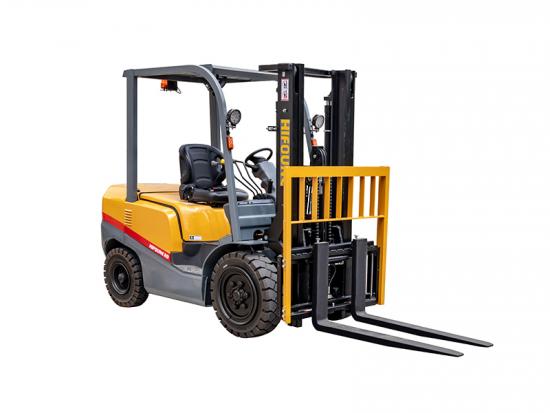

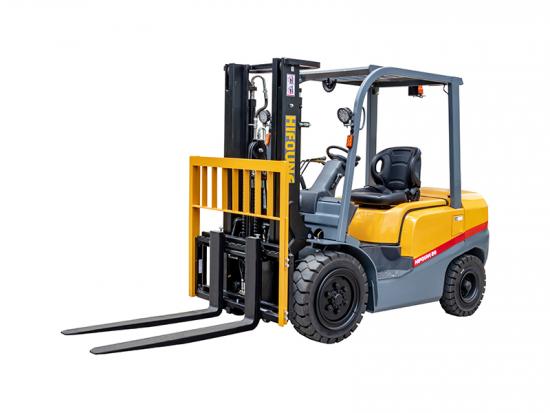

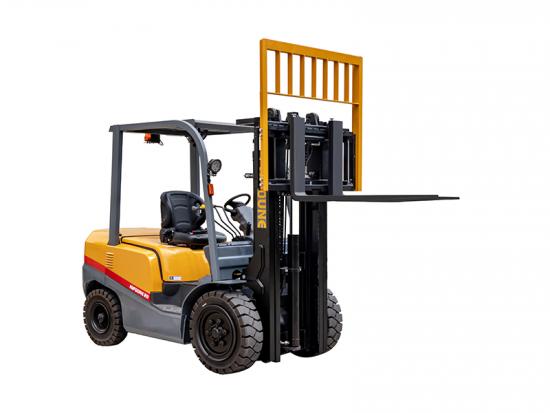

Hifoune FD30T is a forklift at 3ton capacity which uses diesel engine, choosable engine such as xinchai isuzu,etc, color customizable, please contact us for more information.
Brand:
HIFOUNEItem No.:
FD30Payment:
T/T LCProduct origin:
ChinaColor:
white/yellow/otherShipping port:
XiamenLead Time:
30-40 days
Manufacturer
Xiamen Hifoune Machinery Co.,Ltd
Model
FG20
FG25
FG30
FG35
FG40
Fuel
LPG&Gasoline
Operator Type
Driver/seat
Load Capacity
kg
2000
2500
3000
3500
4000
Load Center
mm
500
Max.Lifting Height
mm
3000
Free lifting height
mm
150
Fork Size L*W*T
mm
1220*122*40
1220*125*45
1220*125*50
Mast Tilting Angle Fwd/Bwd
deg
6/12
Overall Length (without fork)
mm
2605
2705
2760
2820
Overall Width
mm
1150
1240
1300
Mast Height(Fork Lowered)
mm
2040
2140
Overhead Guard Height
mm
2090
2100
Turning raduis (exterior)
mm
2170
2240
2400
2560
Min.right angle stacking aisle width
mm
2010
2230
2330
2360
2480
Travelling Speed (Loaded/Unloaded)
km/h
17/19
19/20
Lifting Speed (Loaded/Unloaded)
mm/s
650/710
630/690
Lowering Speed (Loaded/Unloaded)
mm/s
480/450
Max.drawbar pull (Loaded)
N
18
Max.Gradability(Loaded)
%
21
Service brake (Operation/Control)
Hydraulic-foot pedal
Parking brake (Operation/Control)
Mechanical-hand lever
Battery (voltage/capacity)
V/ah
12/80
Truck Weight
kg
3590
3810
4110
4410
4800
Weight distribution Loaded (Front/Rear)
kg
4920/670
5615/695
6256/854
7040/870
7832/968
Weight distribution Unloaded (Front/Rear)
kg
1615/1975
1715/2095
1850/2260
1985/2425
2160/2640
Tyre
Pneumatic Tire
Tyre Size (Front/Rear)
7.00-12-12PR/6.00-9-10PR
28*9-15-14PR/6.50-
0-10PR
250-15-16PR
6.50-10-14PR
Tyre Number (Front/Rear)
2/2
Front tread
mm
970
1000
Rear tread
mm
970
Engine model
KUBOTA WG2503-GL-E3
Rated power
KW/rpm
46.0/2700
Rated torque
N-m/rpm
178.0/1400
Number of cylinder
4
Displacement
L
2.491
Emission Standards
EURO Stage 5
Fuel tank capacity
L
70
Transmission box type
Electronic hydraulic transmisson
3.0ton diesel forklift Product Features
High quality
--3tons diesel forklift truck Adopts gradeability improving style electronic hydraulic transmission,compare with other models:efficiency 5% improved,climbing torque 8% increased,noise 3~5dB reduced,thermal equilibrium temperature 8-10°decreased;
--The super large capacity aluminum tube belt radiator and optimized heat dissipation channel further improve the heat dissipation capacity of the vehicle; -- Load sensing priority steering hydraulic system is adopted to reduce pressure loss of hydraulic system, save energy and improve operation comfort.
High security
--Introducing advances technology from Germany,the unique single chain has greatly enhanced he front view while working.
--All car LED lights, high brightness, long life, energy saving and environmental protection.
High comfort
--The new suspension system,adjustable seat,allowing the driver to feel more comfortable and reducing fatigue during long operations;
--The combined color instrument has strong human-machine interaction and timely and accurately feedback the running state of vehicles.
--Spacious control space, comfortable seats, enjoy the pleasure of riding.
Rich options
ISUZU engine, high exhaust device, air prefilter, fireproof cap, solid tire, two stage free lift mast, three stage free lift mast , widening fork frame, fork sleeve, side shifter, paper roll clamp, bale clamp, carton clamp, block clamp, rotators, drum clamp, push-pull, etc.
Our Factory
Our company. is located in the Xianganindustrial zone of Xiamen torch high tech Zone. It is dedicated to providing reliable and efficient material handling equipment and solutions for customers. It is a professional company integrating R & D, manufacturing, sales and service. The company's main products include a full range of internal combustion counterbalanced forklift trucks, electric counterbalance forklift trucks, and electric warehouse equipments.
We not only aim to provide excellent products to customers in our full range of products, but also provide excellent service to customers in all links.
Q. Why choose HIFOUNE?
A. We are a professional forklift manufacturer and supplier in Xiamen of china with more than 20 years exported experience.Most of our staff are from XGMA machinery.
Q.What are our advantages compared with other manufactures/factories?
A.Carefully select regular manufacturers for supporting spare parts, like engines, bridge,transmissions, and many parts designed and produced by ourselves. Our C series forklift adopt TCM technology, most of parts are compitible with TCM forklift, but have cheaper price.
Q. Which payment terms can we accept?
A. Normally we can work on T/T or L/C.
A.1) On T/T term, 30% payment is required in advance for production, 70% balance shall be paid before delivery or againes the copy of original B/L for old long cooperation clients.
A.2) On L/C term, 100% irrevocable LC at sight without "soft clauses" can be accepted.
Q. Can we provide OEM SERVICE?
A. HIFOUNE can provide customized products according to customers' requirements, both OEM and ODM are acceptable.
