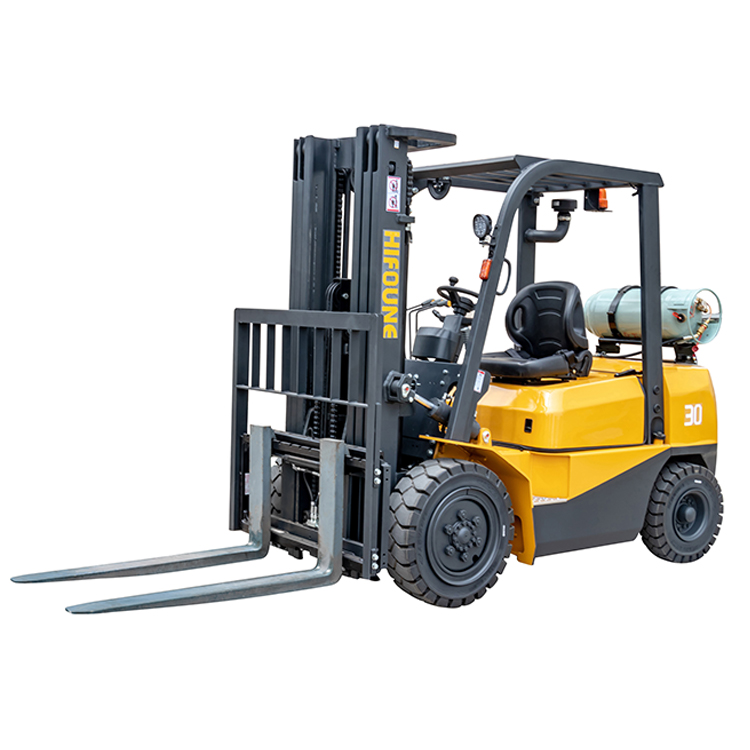

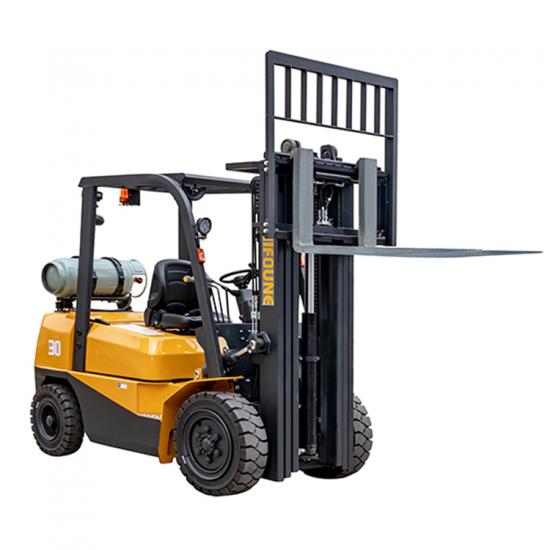

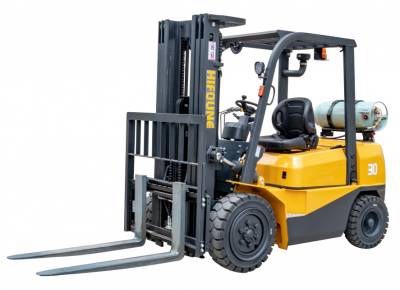

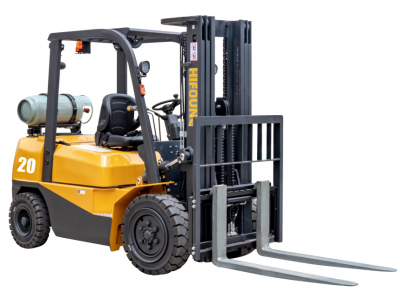

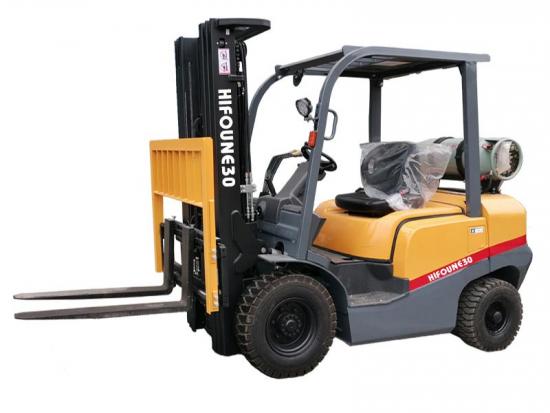

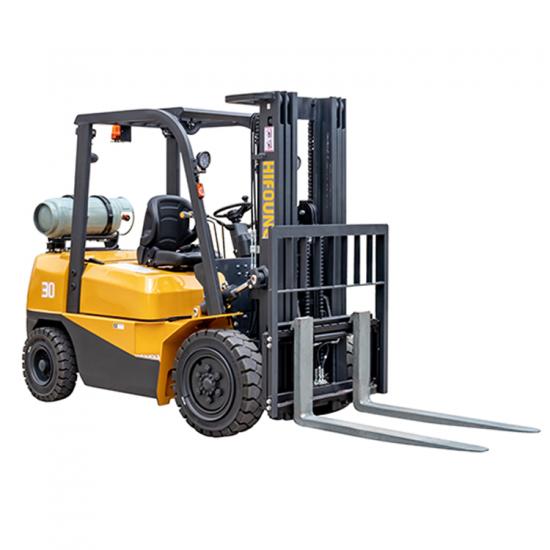

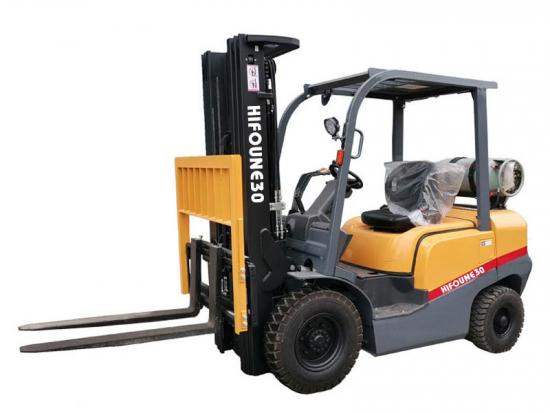

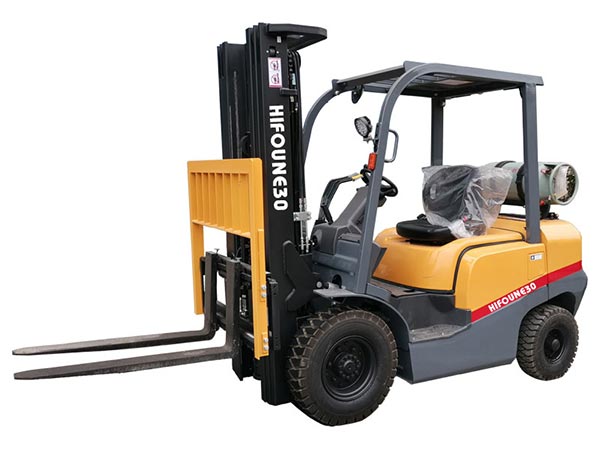

LPG forklifts are widely used in some developed countries such as European and American markets. lpg forklifts are more environmentally friendly than diesel forklifts, so they are more used indoors.
Brand:
HIFOUNEItem No.:
FG30Product origin:
Xiamen, ChinaColor:
White, Orange, RedShipping port:
Xiamen PortLead Time:
7 Days

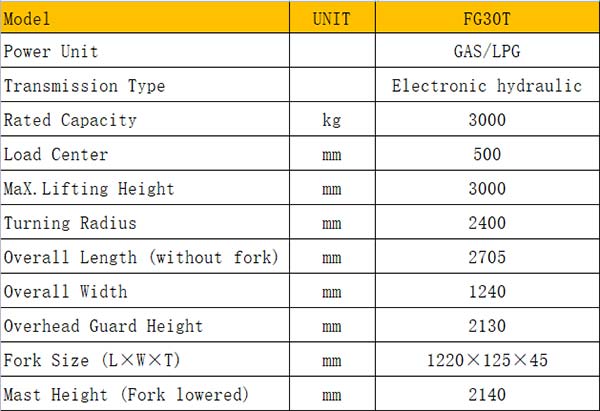

Manufacturer | Xiamen Hifoune Machinery Co.,Ltd | |||||

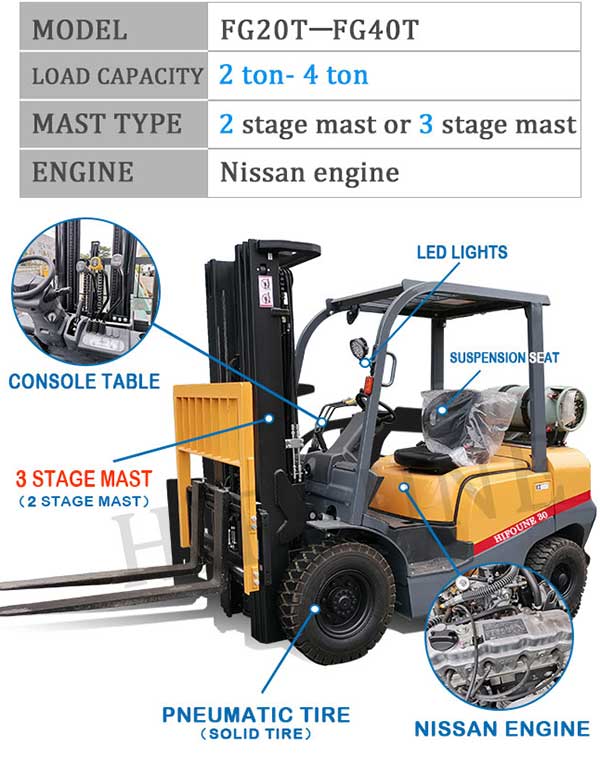

Model | FG20 | FG25 | FG30 | FG35 | FG40 | |
Fuel | LPG&Gasoline | |||||
Operator Type | Driver/seat | |||||
Load Capacity | kg | 2000 | 2500 | 3000 | 3500 | 4000 |
Load Center | mm | 500 | ||||
Max.Lifting Height | mm | 3000 | ||||
Free lifting height | mm | 150 | ||||
Fork Size L*W*T | mm | 1220*122*40 | 1220*125*45 | 1220*125*50 | ||
Mast Tilting Angle Fwd/Bwd | deg | 6/12 | ||||
Overall Length (without fork) | mm | 2605 | 2705 | 2760 | 2820 | |
Overall Width | mm | 1150 | 1240 | 1300 | ||
Mast Height(Fork Lowered) | mm | 2040 | 2140 | |||
Overhead Guard Height | mm | 2090 | 2100 | |||
Turning raduis (exterior) | mm | 2170 | 2240 | 2400 | 2560 | |
Min.right angle stacking aisle width | mm | 2010 | 2230 | 2330 | 2360 | 2480 |
Travelling Speed (Loaded/Unloaded) | km/h | 17/19 | 19/20 | |||
Lifting Speed (Loaded/Unloaded) | mm/s | 650/710 | 630/690 | |||
Lowering Speed (Loaded/Unloaded) | mm/s | 480/450 | ||||
Max.drawbar pull (Loaded) | N | 18 | ||||
Max.Gradability(Loaded) | % | 21 | ||||
Service brake (Operation/Control) | Hydraulic-foot pedal | |||||
Parking brake (Operation/Control) | Mechanical-hand lever | |||||
Battery (voltage/capacity) | V/ah | 12/80 | ||||
Truck Weight | kg | 3590 | 3810 | 4110 | 4410 | 4800 |
Weight distribution Loaded (Front/Rear) | kg | 4920/670 | 5615/695 | 6256/854 | 7040/870 | 7832/968 |
Weight distribution Unloaded (Front/Rear) | kg | 1615/1975 | 1715/2095 | 1850/2260 | 1985/2425 | 2160/2640 |
Tyre | Pneumatic Tire | |||||
Tyre Size (Front/Rear) | 7.00-12-12PR/6.00-9-10PR | 28*9-15-14PR/6.50- | 0-10PR |
250-15-16PR
6.50-10-14PR
|
||
Tyre Number (Front/Rear) | 2/2 | |||||
Front tread | mm | 970 | 1000 | |||
Rear tread | mm | 970 | ||||
Engine model | KUBOTA WG2503-GL-E3 | |||||
Rated power | KW/rpm | 46.0/2700 | ||||
Rated torque | N-m/rpm | 178.0/1400 | ||||
Number of cylinder | 4 | |||||
Displacement | L | 2.491 | ||||
Emission Standards | EURO Stage 5 | |||||
Fuel tank capacity | L | 70 | ||||
Transmission box type | Electronic hydraulic transmisson |
