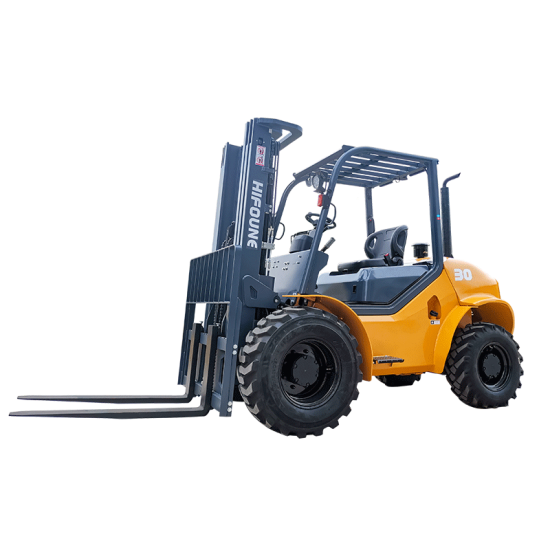

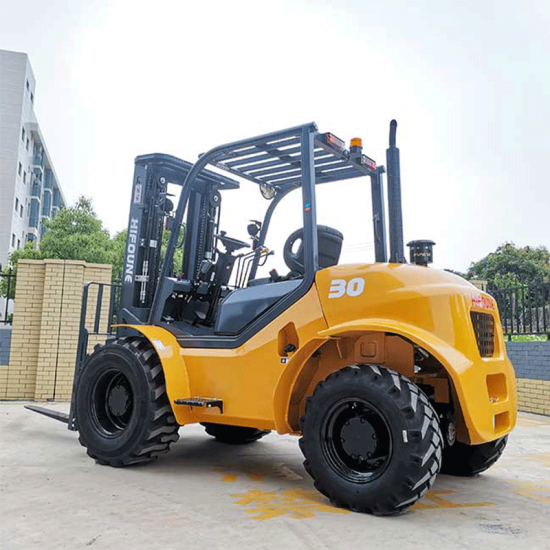

Rough Terrain Forklift 2.5 -3.5 Ton 4X4 2WD/4WD Switch off-road Forklift

4X4 2WD/4WD Switch Internal Combustion FDT 25/35Counterbalanced Rough Terrain Forklift

Brand:
HIFOUNE
Item No.:
FDT2.5 -3.5 Ton

Product Details

1.C.Counterbalanced Rough Terrain Forklift FDT25/35
Brand			Xiamen Hifoune Machinery Co.,Ltd.
Model			FDT25-2WD	FDT35-2WD	FDT25-4WD	FDT35-4WD
Characteristic		Power Unit	Diesel fuel		Diesel fuel
		Driving mode	Seated		Seated
	Kg	Rated Capacity	2500	3500	2500	3500
	mm	Load Center	500		500
	mm	Max.Lifting Height	3000		3000
Weight	kg	Weight	4680	5380	4850	5460
Dimensions	mm	Front Overhand	580	595	580	595
	mm	Rear Overhand	520		520
	mm	Wheelbase	1880		1880
		Mast Tilting Angle (Fwd/Bwd)	10/12		10/12
	mm	Mast Lowered Height	2265		2265
	mm	Free Lifting Height	160	165	165	170
	mm	Max.Lifting Height	4175	4305	4170	4300
	mm	Overhead Guard Height	2263		2263
	mm	Overall Length	2980	2995	3030	3045
	mm	Overall Width	1558	1600	1558	1615
	mm	Fork Size(LxWxT)	1070×122×40	1070×122×45	1070x122x40	1070x125x45
	mm	Min.Ground Clearance,middle of chassis(unloaded)	220		220
	mm	Min.Ground Clearance,mast(unloaded)	270		270
	mm	Min.Turning Radius	2870		3080
	mm	Min.right-angle aisle width	4726	4741
	mm	Min.right-angle channel width	2615		2630	2690
Tire		Tire type	Inflatable tire		Inflatable tire
		Tire Number(X=Driving Tire)	2×/2		2×/2×
		FrontTireType	12-16.5-12PR	14-17.5-14PR	12-16.5-12PR	14-17.5-14PR
		Rear Tire Type	10.0/75-15.3		10.0/75-15.3
	mm	Front Wheel Tread	1270.5		1233	1265
	mm	Rear Wheel Tread	1205		1220
Performance	Km/h	Travelling Speed(Loaded/Unloaded)	18/22	18/22	19/20	18/19
	mm/s	Lifting Speed(Loaded/Unloaded)	450/480	400/430	600/620	480/500
	kN	Maximum traction force(Loaded/Unloaded)	17		38
	%	Max.Gradeability (Loaded/Unloaded)	20	16	50	45
Drive system		Engine brand/model	xinchai 3E22YG51		Xinchai 3E22YG51
	KW/rpm	Rated power/speed	44.8/2400		44.8/2400
	Nm/rpm	Maximum torque/speed	210/1600-1800		210/1600-1800
		Number of cylinders -cylinder diameter xstroke	3-94×107		3-94×107
	L	Engine displacement	2.23		2.23
		Emission standards	Europe V		Europe V
		Transmission gear (front/rear)	1/1 ZhongChai YQXDY37 S1		2/1 ZhongChai FSDT35 I
The standard model data would vary according to the configuration.

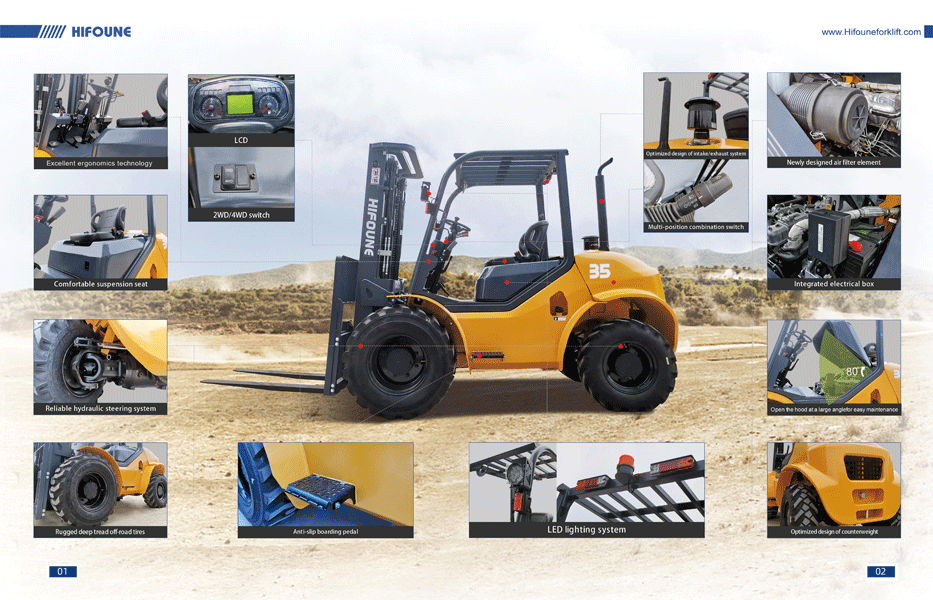

Internal Combustion FDT 25/35Counterbalanced Rough Terrain Forklift Main Features:
1.Excellent ergonomics technology

2.Comfortable suspension seat

3.Reliable hydraulic steering system

4.Rugged deep tread off-road tires

5.Anti-slip boarding pedal

6.LED lighting system

7.Optimized design of counterweight

8.Integrated electrical box

9.Newly designed air filter element

10.Multi-position combination switch

11.Optimized design of intake/exhaust system

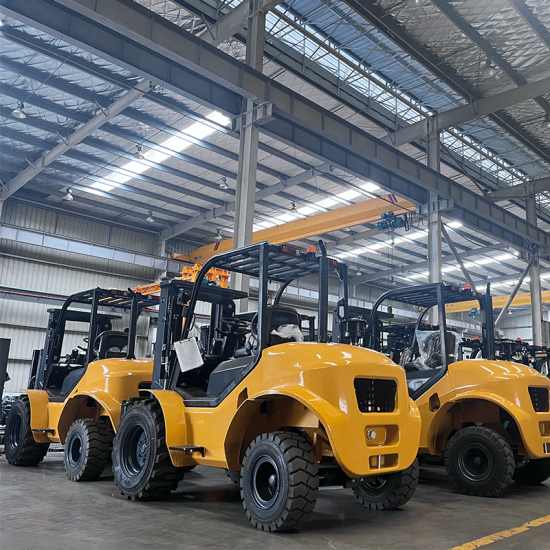

Our Factory
Our company. is located in the Xianganindustrial zone of Xiamen torch high tech Zone. It is dedicated to providing reliable and efficient material handling equipment and solutions for customers. It is a professional company integrating R & D, manufacturing, sales and service. The company's main products include a full range of internal combustion counterbalanced forklift trucks, electric counterbalance forklift trucks, and electric warehouse equipments.
We not only aim to provide excellent products to customers in our full range of products, but also provide excellent service to customers in all links.
Certifications
FAQ
Q. Why choose HIFOUNE?
A. We are a professional forklift manufacturer and supplier in Xiamen of china with more than 20 years exported experience.Most of our staff are from XGMA machinery.

Q.What are our advantages compared with other manufactures/factories?
A.Carefully select regular manufacturers for supporting spare parts, like engines, bridge,transmissions, and many parts designed and produced by ourselves. Our C series forklift adopt TCM technology, most of parts are compitible with TCM forklift, but have cheaper price.

Q. Which payment terms can we accept?
A. Normally we can work on T/T or L/C.
A.1) On T/T term, 30% payment is required in advance for production, 70% balance shall be paid before delivery or againes the copy of original B/L for old long cooperation clients.
A.2) On L/C term, 100% irrevocable LC at sight without "soft clauses" can be accepted.

Q. Can we provide OEM SERVICE?
A. HIFOUNE can provide customized products according to customers
