2ton 3ton 5ton Truck Hand Pallet

2T 2.5T 3T 5T Hydraulic Pallet Truck

Brand:
HIFOUNE

Product Details

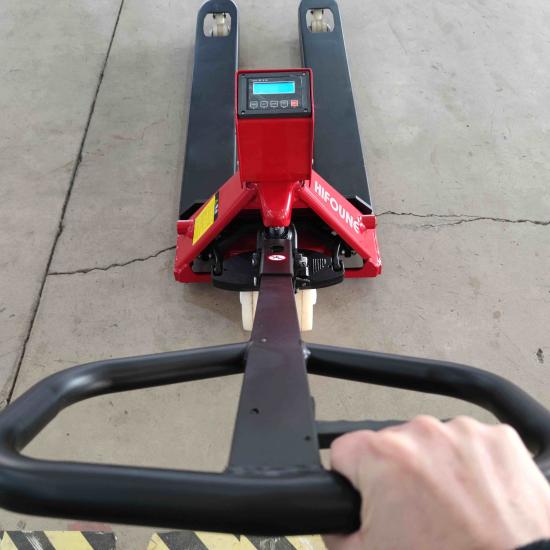

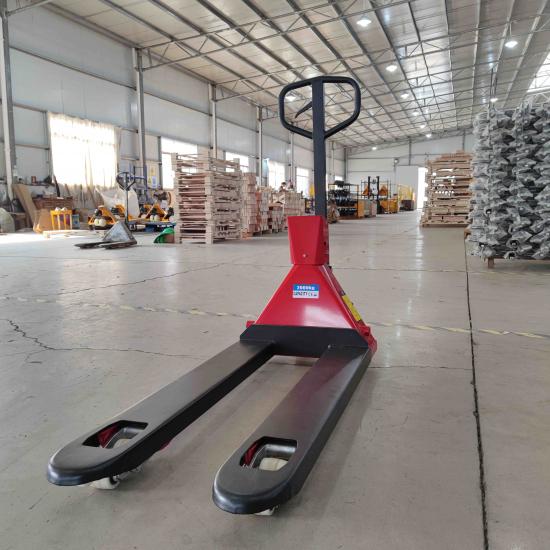

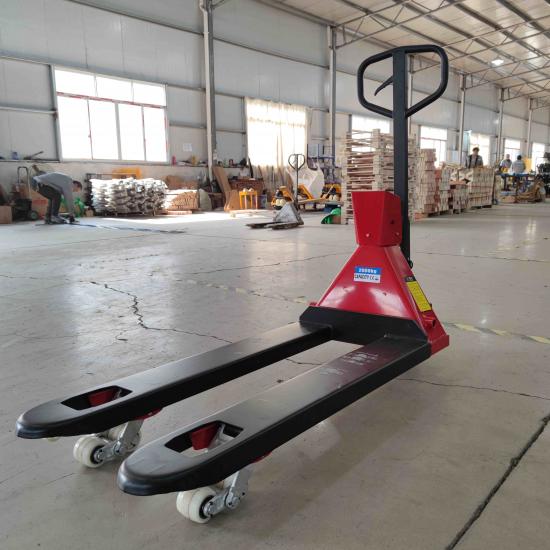

2T 2.5T 3T 5T Hydraulic Pallet Truck

Product Features

Adopted the integrated casting process and the overall seal design, with the high-quality imported components for key parts, the pump can’t leak even when the seal for pressure cylinder breaks.

All the piston rods are chrome plated, which makes them good enough in heat resistance

and hardness.

Unlike the scattered parts, the pump valve core with the overall design is convenient for maintenance.

With the overload protection on the valve, the pump can’t lift when overloaded.

Model		Unit	AC20		AC25		AC30
Rated load		kg	2000		2500		3000
Lowest height of fork		mm	85	75	85	75	85	75
Max height of fork		mm	200	190	200	190	200	190
Steering wheel		mm	200×50	180×50	200×50	180×50	200×50	180×50
Carrying roller	Single	mm	82×93	74×93	82×93	74×93	82×93	74×93
	Double	mm	82×70	74×70	82×70	74×70	82×70	74×70
Fork size		mm	160×50				160×60
Total width of fork		mm	380/450/520/540/685		450/520/540/685
Fork length		mm	800/900/1000/1067/1100/1150/1220

Hot Tags :

Hydraulic Pallet Truck Hand Pallet Truck Harga Hand Pallet Truck Best Hand Pallet Truck Lifter Hand Pallet Truck Pallet Jack Hand Truck

Next :
1.8Ton 8m Electric Reach Truck Retractable Forklift Truck

Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Subject : 2ton 3ton 5ton Truck Hand Pallet

Categories

New Products

related products

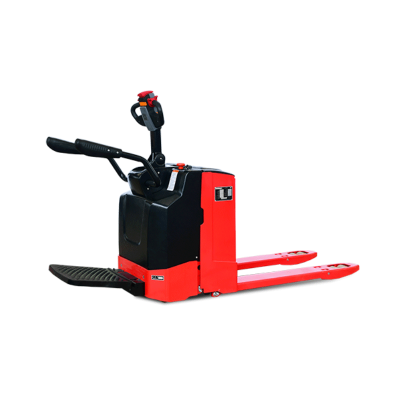

Electric Pallet truck 2.0~2.5 ton

Hifoune PT series is electric pallet trucks at 2.0~6.0ton capacity optional, man stand-on operating type

Electric Pallet truck 3.0~4.0 ton

Hifoune PT series is battery operated forklift at 2.0~6.0ton capacity optional, man stand-on operating type

Electric Pallet Stacker 1.5~2.0 ton

Hifoune ST series is electric pallet trucks at 1.5~2.0ton capacity optional, man stand-on operating type

Electric Order Picker 1.0 ton

Hifoune OP series is electric order picker at 1.0ton capacity optional, man stand-on operating type

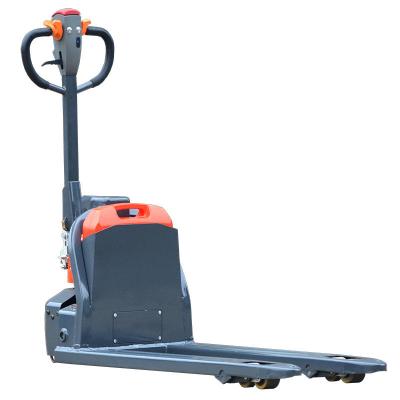

Pallet Truck 2Ton 48V Lithium-Ion Battery

2Ton 48V Environmentally New Energy Lithium-Ion Battery Pallet Truck

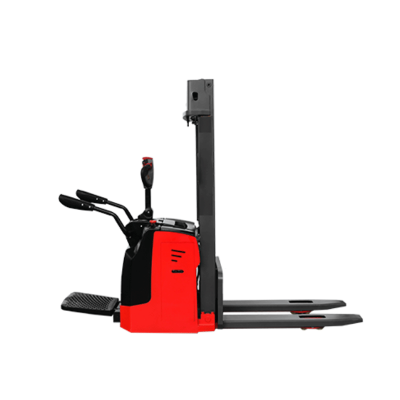

1.5ton 4500mm Height Stand on Reach Truck Stacker
