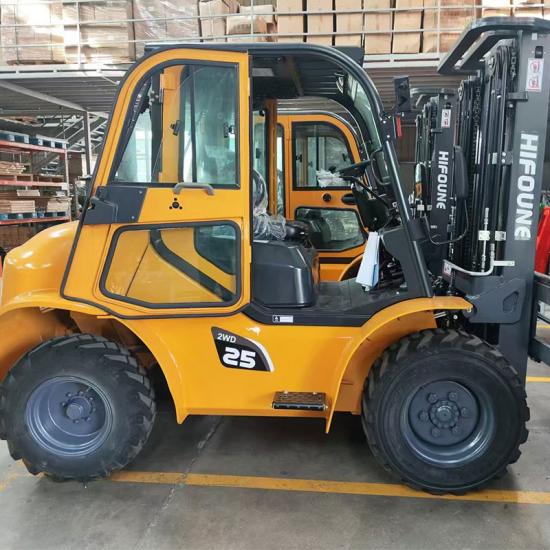

4X4 2WD Switch Electric FBT 25/35 Counterbalanced Rough Terrain Forklift
Brand:
HIFOUNEItem No.:
FBT2.5 -3.5 Ton
1.C.Counterbalanced Rough Terrain Forklift FDT25/35
Brand
Xiamen Hifoune Machinery Co.,Ltd.
Model
FDT25-2WD
FDT35-2WD
FDT25-4WD
FDT35-4WD
Characteristic
Power Unit
Diesel fuel
Diesel fuel
Driving mode
Seated
Seated
Kg
Rated Capacity
2500
3500
2500
3500
mm
Load Center
500
500
mm
Max.Lifting Height
3000
3000
Weight
kg
Weight
4680
5380
4850
5460
Dimensions
mm
Front Overhand
580
595
580
595
mm
Rear Overhand
520
520
mm
Wheelbase
1880
1880
Mast Tilting Angle (Fwd/Bwd)
10/12
10/12
mm
Mast Lowered Height
2265
2265
mm
Free Lifting Height
160
165
165
170
mm
Max.Lifting Height
4175
4305
4170
4300
mm
Overhead Guard Height
2263
2263
mm
Overall Length
2980
2995
3030
3045
mm
Overall Width
1558
1600
1558
1615
mm
Fork Size(LxWxT)
1070×122×40
1070×122×45
1070x122x40
1070x125x45
mm
Min.Ground Clearance,middle of chassis(unloaded)
220
220
mm
Min.Ground Clearance,mast(unloaded)
270
270
mm
Min.Turning Radius
2870
3080
mm
Min.right-angle aisle width
4726
4741
mm
Min.right-angle channel width
2615
2630
2690
Tire
Tire type
Inflatable tire
Inflatable tire
Tire Number(X=Driving Tire)
2×/2
2×/2×
FrontTireType
12-16.5-12PR
14-17.5-14PR
12-16.5-12PR
14-17.5-14PR
Rear Tire Type
10.0/75-15.3
10.0/75-15.3
mm
Front Wheel Tread
1270.5
1233
1265
mm
Rear Wheel Tread
1205
1220
Performance
Km/h
Travelling Speed(Loaded/Unloaded)
18/22
18/22
19/20
18/19
mm/s
Lifting Speed(Loaded/Unloaded)
450/480
400/430
600/620
480/500
kN
Maximum traction force(Loaded/Unloaded)
17
38
%
Max.Gradeability (Loaded/Unloaded)
20
16
50
45
Drive system
Engine brand/model
xinchai 3E22YG51
Xinchai 3E22YG51
KW/rpm
Rated power/speed
44.8/2400
44.8/2400
Nm/rpm
Maximum torque/speed
210/1600-1800
210/1600-1800
Number of cylinders -cylinder diameter xstroke
3-94×107
3-94×107
L
Engine displacement
2.23
2.23
Emission standards
Europe V
Europe V
Transmission gear (front/rear)
1/1
ZhongChai YQXDY37 S1
2/1
ZhongChai FSDT35 I
The standard model data would vary according to the configuration.
Internal Combustion FDT 25/35Counterbalanced Rough Terrain Forklift Main Features:
1.Excellent ergonomics technology
2.Comfortable suspension seat
3.Reliable hydraulic steering system
4.Rugged deep tread off-road tires
5.Anti-slip boarding pedal
6.LED lighting system
7.Optimized design of counterweight
8.Integrated electrical box
9.Newly designed air filter element
10.Multi-position combination switch
11.Optimized design of intake/exhaust system
Our Factory
Our company. is located in the Xianganindustrial zone of Xiamen torch high tech Zone. It is dedicated to providing reliable and efficient material handling equipment and solutions for customers. It is a professional company integrating R & D, manufacturing, sales and service. The company's main products include a full range of internal combustion counterbalanced forklift trucks, electric counterbalance forklift trucks, and electric warehouse equipments.
We not only aim to provide excellent products to customers in our full range of products, but also provide excellent service to customers in all links.
Certifications
FAQ
Q. Why choose HIFOUNE?
A. We are a professional forklift manufacturer and supplier in Xiamen of china with more than 20 years exported experience.Most of our staff are from XGMA machinery.
Q.What are our advantages compared with other manufactures/factories?
A.Carefully select regular manufacturers for supporting spare parts, like engines, bridge,transmissions, and many parts designed and produced by ourselves. Our C series forklift adopt TCM technology, most of parts are compitible with TCM forklift, but have cheaper price.
Q. Which payment terms can we accept?
A. Normally we can work on T/T or L/C.
A.1) On T/T term, 30% payment is required in advance for production, 70% balance shall be paid before delivery or againes the copy of original B/L for old long cooperation clients.
A.2) On L/C term, 100% irrevocable LC at sight without "soft clauses" can be accepted.
Q. Can we provide OEM SERVICE?
A. HIFOUNE can provide customized products according to customers
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
