We know that there are many forklift manufacturers in the market. When purchasing this kind of forklift, we should not only consider the after-sales service of the manufacturer, but also consider some details.
Brand:
HIFOUNEItem No.:
FG40Product origin:
Xiamen,Fujian,ChinaColor:
White, Orange, RedShipping port:
Xiamen PortLead Time:
15 DaysForklift manufacturers will produce different products. These different products can be used in different places for the factory. If you need to transport lighter and larger goods, you can use lower-weight forklifts. But if you need to transport heavier goods, you need to use high-performance and heavy duty forklifts. The specifications of forklifts are different. Some forklifts are smaller and some forklifts are larger, The key still depends on your own needs.

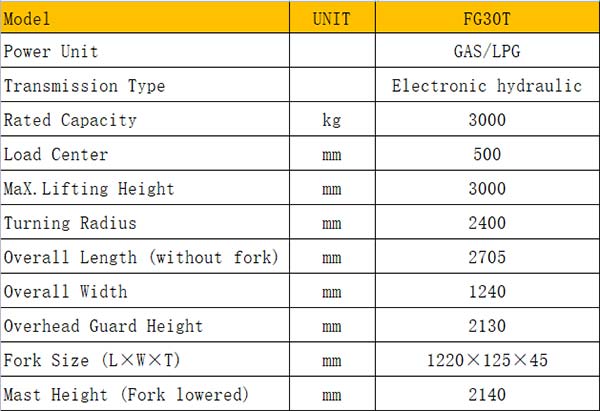

Hifoune nissan engine Lpg forklift specification
Manufacturer | Xiamen Hifoune Machinery Co.,Ltd | |||||
Model | FG20 | FG25 | FG30 | FG35 | FG40 | |
Fuel | LPG&Gasoline | |||||
Operator Type | Driver/seat | |||||
Load Capacity | kg | 2000 | 2500 | 3000 | 3500 | 4000 |
Load Center | mm | 500 | ||||
Max.Lifting Height | mm | 3000 | ||||
Free lifting height | mm | 150 | ||||
Fork Size L*W*T | mm | 1220*122*40 | 1220*125*45 | 1220*125*50 | ||
Mast Tilting Angle Fwd/Bwd | deg | 6/12 | ||||
Overall Length (without fork) | mm | 2605 | 2705 | 2760 | 2820 | |
Overall Width | mm | 1150 | 1240 | 1300 | ||
Mast Height(Fork Lowered) | mm | 2040 | 2140 | |||
Overhead Guard Height | mm | 2090 | 2100 | |||
Turning raduis (exterior) | mm | 2170 | 2240 | 2400 | 2560 | |
Min.right angle stacking aisle width | mm | 2010 | 2230 | 2330 | 2360 | 2480 |
Travelling Speed (Loaded/Unloaded) | km/h | 17/19 | 19/20 | |||
Lifting Speed (Loaded/Unloaded) | mm/s | 650/710 | 630/690 | |||
Lowering Speed (Loaded/Unloaded) | mm/s | 480/450 | ||||
Max.drawbar pull (Loaded) | N | 18 | ||||
Max.Gradability(Loaded) | % | 21 | ||||
Service brake (Operation/Control) | Hydraulic-foot pedal | |||||
Parking brake (Operation/Control) | Mechanical-hand lever | |||||
Battery (voltage/capacity) | V/ah | 12/80 | ||||
Truck Weight | kg | 3590 | 3810 | 4110 | 4410 | 4800 |
Weight distribution Loaded (Front/Rear) | kg | 4920/670 | 5615/695 | 6256/854 | 7040/870 | 7832/968 |
Weight distribution Unloaded (Front/Rear) | kg | 1615/1975 | 1715/2095 | 1850/2260 | 1985/2425 | 2160/2640 |
Tyre | Pneumatic Tire | |||||
Tyre Size (Front/Rear) | 7.00-12-12PR/6.00-9-10PR | 28*9-15-14PR/6.50- | 0-10PR |
250-15-16PR
6.50-10-14PR
|
||
Tyre Number (Front/Rear) | 2/2 | |||||
Front tread | mm | 970 | 1000 | |||
Rear tread | mm | 970 | ||||

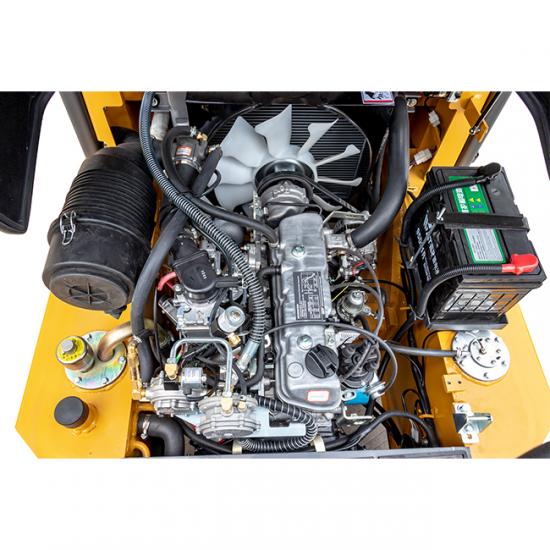

Engine model | KUBOTA WG2503-GL-E3 | |||||
Rated power | KW/rpm | 46.0/2700 | ||||
Rated torque | N-m/rpm | 178.0/1400 | ||||
Number of cylinder | 4 | |||||
Displacement | L | 2.491 | ||||
Emission Standards | EURO Stage 5 | |||||
Fuel tank capacity | L | 70 | ||||
Transmission box type | Electronic hydraulic transmisson |
