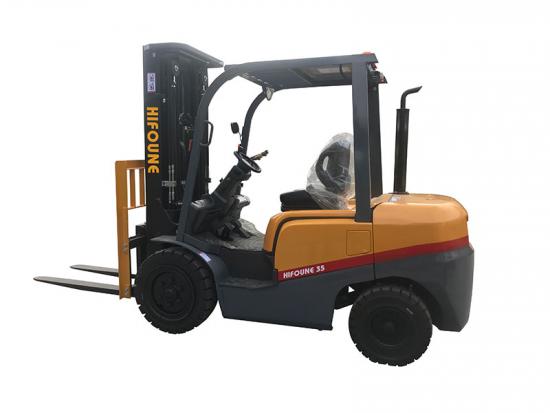

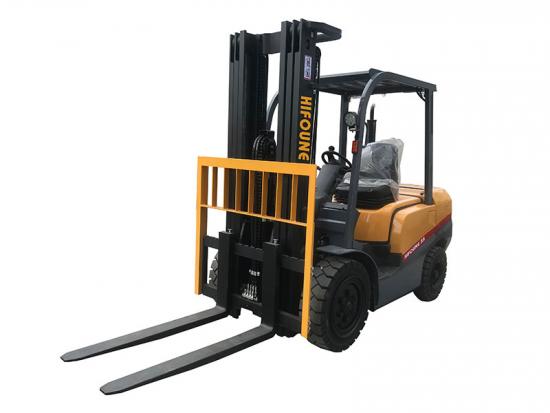

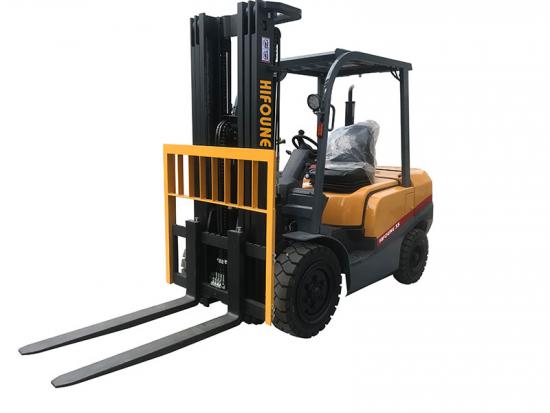

Mitsubishi Engine 3.5 Tonne 3 Stage 5m Mast Diesel Forklift For Sale

Mitsubishi Engine 3.5 Tonne 3 Stage 5m Mast Diesel Forklift For Sale

The main types of forklifts are diesel forklifts, LPG forklifts, and electric forklifts. At present, these three forklifts are the most common. The following hifoune forklift manufacturer briefly introduces how to choose a 3.5 ton diesel forklift.

  • Brand:

    HIFOUNE
  • Item No.:

    FG35
  • Product origin:

    Xiamen, China
  • Color:

    White, Orange, Red
  • Shipping port:

    Xiamen Port
  • Lead Time:

    7 Days
Product Details
Now forklifts have been widely used in various positions. For example, in warehouses, docks and other logistics transfer and handling, the existence of forklifts is very much needed. The main types of forklifts are diesel forklifts, LPG forklifts, and electric forklifts. At present, these three forklifts are the most common. So how do you need to pay attention to the choice of forklifts? The following hifoune forklift manufacturer briefly introduces how to choose a 3.5 ton diesel forklift.

About the specification and size of hifoune 3.5 ton forklift
Hifoune 3.5 ton diesel forklifts have a variety of specifications and sizes. In many cases, they can be customized and designed according to the needs of customers. We can also paste the customer's brand on the logo. Help customers make their own brand. Here are some of our regular sizes.
Manufacturer Xiamen Hifoune Machinery Co.,Ltd
Model  FG20  FG25 FG30 FG35 FG40
Fuel   LPG&Gasoline
Operator Type   Driver/seat
Load Capacity   kg  2000   2500  3000  3500  4000
Load Center mm 500
Max.Lifting Height mm 3000
Free lifting height mm 150
Fork Size L*W*T mm 1220*122*40   1220*125*45  1220*125*50
Mast Tilting Angle Fwd/Bwd deg 6/12
Overall Length (without fork) mm 2605  2705  2760  2820
Overall Width mm 1150  1240  1300
Mast Height(Fork Lowered) mm 2040  2140
Overhead Guard Height mm 2090  2100
Turning raduis (exterior) mm  2170   2240  2400  2560
Min.right angle stacking aisle width mm  2010   2230  2330  2360  2480
Travelling Speed (Loaded/Unloaded) km/h 17/19 19/20
Lifting Speed (Loaded/Unloaded) mm/s 650/710 630/690
Lowering Speed (Loaded/Unloaded) mm/s 480/450
Max.drawbar pull (Loaded) N 18
Max.Gradability(Loaded) % 21
Service brake (Operation/Control) Hydraulic-foot pedal
Parking brake (Operation/Control) Mechanical-hand lever
Battery (voltage/capacity) V/ah 12/80
Truck Weight   kg 3590   3810  4110  4410  4800
Weight distribution Loaded (Front/Rear) kg 4920/670 5615/695 6256/854 7040/870 7832/968
Weight distribution Unloaded (Front/Rear) kg 1615/1975 1715/2095 1850/2260 1985/2425 2160/2640
Tyre   Pneumatic Tire
Tyre Size (Front/Rear) 7.00-12-12PR/6.00-9-10PR 28*9-15-14PR/6.50- 0-10PR
250-15-16PR
6.50-10-14PR
Tyre Number (Front/Rear)  2/2
Front tread mm 970  1000
Rear tread mm 970
Engine model KUBOTA     WG2503-GL-E3
Rated power KW/rpm 46.0/2700
Rated torque N-m/rpm 178.0/1400
Number of cylinder 4
Displacement L 2.491
Emission Standards EURO Stage 5
Fuel tank capacity L 70
Transmission box type Electronic hydraulic transmisson

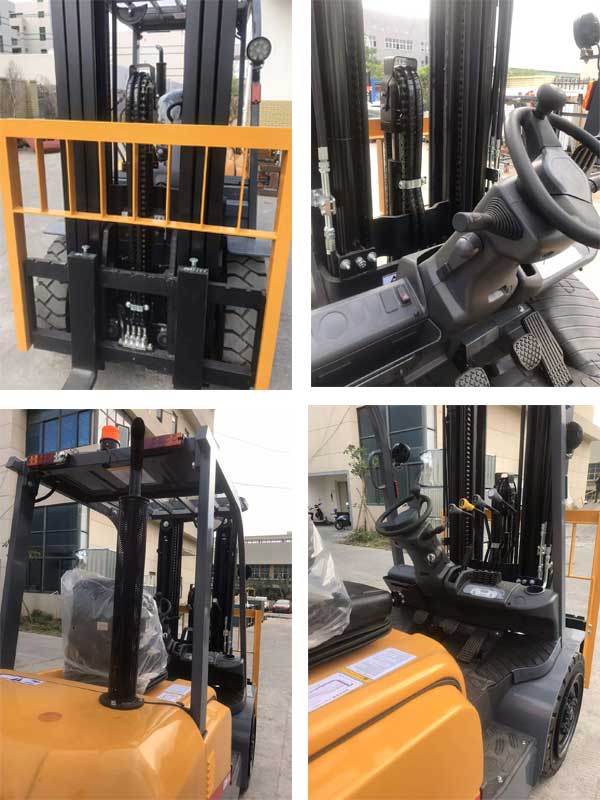

Some pictures and details about hifoune forklift


So on the whole, how to choose a 3.5 ton diesel forklift? Let me give you a brief introduction.
1. The loading and unloading performance of a 3.5 ton diesel forklift:
The loading and unloading performance of forklifts reflects the lifting capacity and operating efficiency of forklifts, and is an important factor in determining the productivity of forklifts. It is often characterized by technical parameters such as rated lifting weight, load center distance, maximum lifting height, free lifting height, lifting and lowering speed, front and rear inclination angle of the mast.

2. Forklift traction performance:
It reflects the driving ability of the forklift, which is commonly used to characterize the maximum driving speed at full load and no load, the maximum gradeability at full load and no load, and the hook traction. It has a greater impact on the productivity of forklifts, especially under the condition of a large handling distance in the freight yard.

3. The braking performance of the forklift:
It reflects the ability of forklifts to decelerate and stop quickly while driving, and determines the safety of forklift operations.

4. The stability of the forklift:
It refers to the ability of forklifts to resist tipping under various working conditions and is a necessary condition to ensure the safety of forklift operations. Relevant standards stipulate: Forklift trucks must undergo relevant longitudinal stability and lateral stability tests, and they can be sold only after all the tests are qualified.

5. Mobility of forklift:
It reflects the ability of forklifts to turn and operate flexibly in narrow passages and sites, and is related to the adaptability of forklifts to the workplace and the utilization rate of warehouses and freight yards. The technical parameters related to mobility include the minimum turning radius, the minimum width of the right-angle channel, and the minimum width of the stacking channel.

6. The passability of the forklift:
It reflects the forklift's ability to overcome road obstacles and pass various roads and gateways. The technical parameters representing the passability of the forklift include: minimum ground clearance, profile height and width, etc.

7. The ease of operation and comfort of the forklift:
The layout of the operating parts and the driver's seat of the forklift must meet the requirements of ergonomics. The operating force and operating stroke of the operating handles and pedals must be within the range of physical ability to prevent the driver from being over fatigued. It must have a good operating vision and Comfortable riding environment, etc.
Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

related products
pick up lifting machine

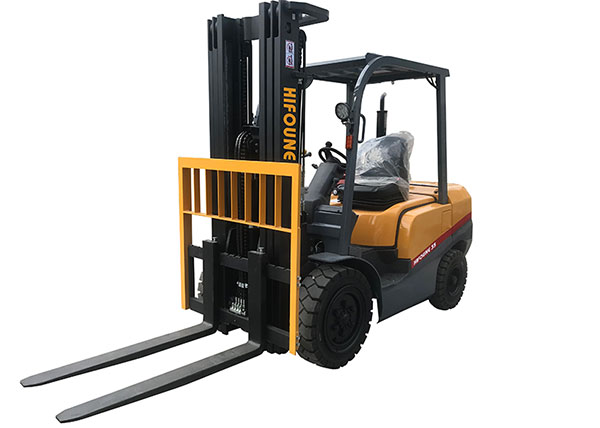

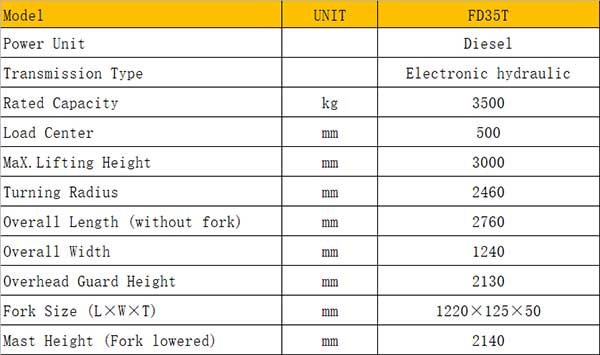

Diesel Forklift C-series 3.5 ton
