Diesel forklifts are more powerful, but in terms of environmental protection, they are not as good as the forklift lpg system. Gasoline forklifts are slightly inferior in terms of power, but they are relatively environmentally friendly and hygienic.
Brand:
HIFOUNEItem No.:
FG30Product origin:
Xiamen, ChinaColor:
White, Orange, RedShipping port:
Xiamen PortLead Time:
7 Days
With the development of the economy, the use of forklifts in various fields has become more and more popular, but for some fields, they have considered environmental protection issues when considering purchasing a forklift, rather than simply buying a forklift. use. Therefore, they take many factors into consideration when purchasing. For example, whether to use a diesel forklift or gasoline and lpg forklift truck. Diesel forklifts are more powerful, but in terms of environmental protection, they are not as good as the forklift lpg system. Gasoline forklifts are slightly inferior in terms of power, but they are relatively environmentally friendly and hygienic. This is why gasoline forklift is more popular in developed countries. Then the following hifoune forklift factory will introduce to you how to use nissan lpg forklift.

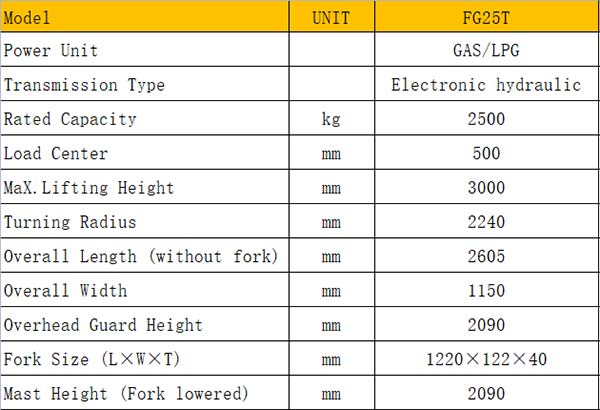

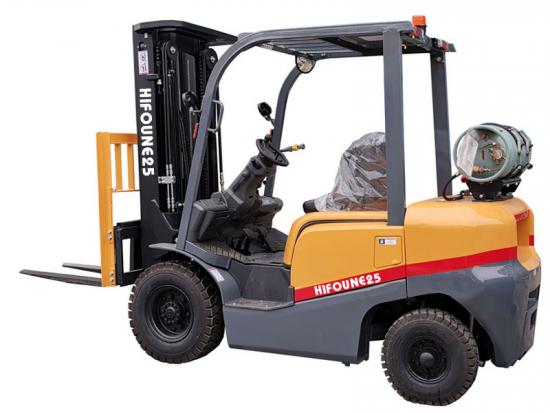

Lpg Forklift Truck Specification
Manufacturer | Xiamen Hifoune Machinery Co.,Ltd | |||||
Model | FG20 | FG25 | FG30 | FG35 | FG40 | |
Fuel | LPG&Gasoline | |||||
Operator Type | Driver/seat | |||||
Load Capacity | kg | 2000 | 2500 | 3000 | 3500 | 4000 |
Load Center | mm | 500 | ||||
Max.Lifting Height | mm | 3000 | ||||
Free lifting height | mm | 150 | ||||
Fork Size L*W*T | mm | 1220*122*40 | 1220*125*45 | 1220*125*50 | ||
Mast Tilting Angle Fwd/Bwd | deg | 6/12 | ||||
Overall Length (without fork) | mm | 2605 | 2705 | 2760 | 2820 | |
Overall Width | mm | 1150 | 1240 | 1300 | ||
Mast Height(Fork Lowered) | mm | 2040 | 2140 | |||
Overhead Guard Height | mm | 2090 | 2100 | |||
Turning raduis (exterior) | mm | 2170 | 2240 | 2400 | 2560 | |
Min.right angle stacking aisle width | mm | 2010 | 2230 | 2330 | 2360 | 2480 |
Travelling Speed (Loaded/Unloaded) | km/h | 17/19 | 19/20 | |||
Lifting Speed (Loaded/Unloaded) | mm/s | 650/710 | 630/690 | |||
Lowering Speed (Loaded/Unloaded) | mm/s | 480/450 | ||||
Max.drawbar pull (Loaded) | N | 18 | ||||
Max.Gradability(Loaded) | % | 21 | ||||
Service brake (Operation/Control) | Hydraulic-foot pedal | |||||
Parking brake (Operation/Control) | Mechanical-hand lever | |||||
Battery (voltage/capacity) | V/ah | 12/80 | ||||
Truck Weight | kg | 3590 | 3810 | 4110 | 4410 | 4800 |
Weight distribution Loaded (Front/Rear) | kg | 4920/670 | 5615/695 | 6256/854 | 7040/870 | 7832/968 |
Weight distribution Unloaded (Front/Rear) | kg | 1615/1975 | 1715/2095 | 1850/2260 | 1985/2425 | 2160/2640 |
Tyre | Pneumatic Tire | |||||
Tyre Size (Front/Rear) | 7.00-12-12PR/6.00-9-10PR | 28*9-15-14PR/6.50- | 0-10PR |
250-15-16PR 6.50-10-14PR |
||
Tyre Number (Front/Rear) | 2/2 | |||||
Front tread | mm | 970 | 1000 | |||
Rear tread | mm | 970 | ||||
Engine model | KUBOTA WG2503-GL-E3 | |||||
Rated power | KW/rpm | 46.0/2700 | ||||
Rated torque | N-m/rpm | 178.0/1400 | ||||
Number of cylinder | 4 | |||||
Displacement | L | 2.491 | ||||
Emission Standards | EURO Stage 5 | |||||
Fuel tank capacity | L | 70 | ||||
Transmission box type | Electronic hydraulic transmisson |
1. First of all, be familiar with the relevant manuals of liquefied gas forklift trucks, and have a comprehensive understanding and understanding of the liquefied gas conversion system. During the use of the forklift, do not park the forklift near heat sources or fire sources, such as open flames, burning cigarette butts, sparks, electric welding, machines and electrical equipment that generate high temperature; do not adjust or modify the liquefied gas conversion device without authorization; regular maintenance and inspections should be carried out on time; remain vigilant, leaks or abnormalities should be dealt with immediately.
2. Realize a reasonable start: If the dual fuel uses liquefied gas gas, it should be confirmed whether the manual valve on the cylinder is fully opened before working. When the forklift is idle for a long time, the manual valve should be closed. The system must turn the switch to the LPG position. After starting, especially in cold areas, it is best to warm up the car for two or three minutes, and let the cooling water system of the internal combustion engine preheat before driving to ensure that the warm water can flow into the carburetor to accelerate the vaporization. .
3. Pay attention to the fuel switching method (single-fuel forklift does not need to be considered): the dual-fuel forklift should be switched when the forklift is parked, and cannot be switched while driving; when the gasoline is switched to liquefied gas, let the internal combustion engine continue to run at idle speed, at this time, the Turn the switch to the neutral position, let the gasoline accumulated in the carburetor burn out until the flame is turned off, then turn the fuel switch to the liquefied gas position and restart; when switching from liquefied gas to gasoline, you can directly rotate the switch to gasoline position without stopping in neutral. At this point, be careful to pull out the cable. When the dual-fuel system mainly burns liquefied gas, it is necessary to keep at least 1/4 of the oil in the fuel tank for emergencies. need. It is also necessary to burn gasoline occasionally to ensure that the gasoline system will not fail due to excessive idle speed and prevent the embrittlement of the oil pipeline. It is recommended to burn 10 kg of gasoline per month.
4. Correct filling: There are two ways to fill, one is to change the bottle; the other is to directly inflate on the forklift. When filling or changing bottles, it must be outdoors to ensure good ventilation, and the safety should meet the requirements of local fire protection standards. The forklift must be stopped and the driver must leave the driver's seat. It is strictly forbidden to set off fireworks, heat sources and fire sources around. Handle cylinders carefully without bumping, throwing or rolling on the ground. The filling personnel must monitor the whole process during the filling process and must not leave the site. To inflate, place the air gun on the inflation valve on the bottle and tighten. At the same time, unscrew the 80% liquid level hole of the bottle body and start to inflate. When white mist emerges from the 80% liquid level hole, stop the inflation immediately, tighten the 80% liquid level hole, and check whether the indication of the liquid level gauge is correct.
