4.5ton 2500kg Nissan Engine Lpg Gasoline Forklift with 3 Stage Mast

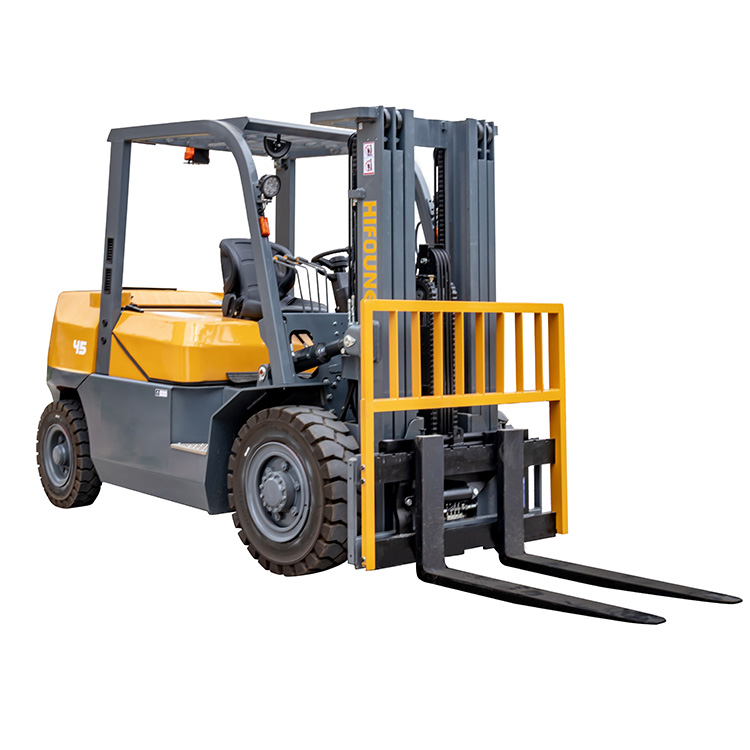

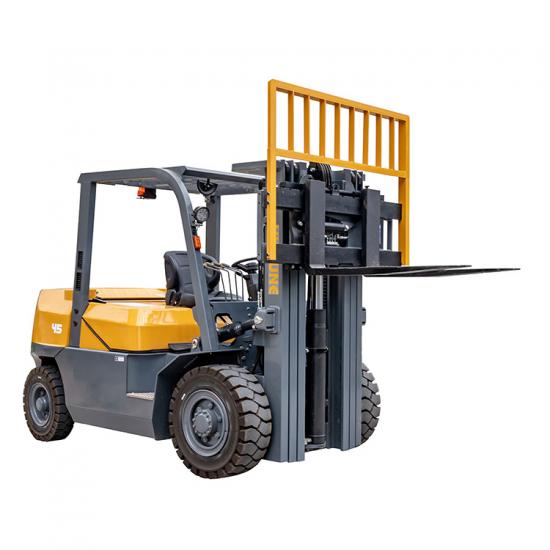

4.5ton 2500kg Nissan Engine Lpg Gasoline Forklift with 3 Stage Mast

Hifoune forklift supplier factories are mainly divided into diesel forklifts, Nissan engine lpg forklift and gasoline forklifts. In addition, we are also developing and designing electric forklifts.

  • Brand:

    HIFOUNE
  • Item No.:

    FG45
  • Product origin:

    Xiamen, China
  • Color:

    White, Orange, Red
  • Shipping port:

    Xiamen Port
  • Lead Time:

    15 Days
Product Details

Internal fuel forklifts, in the entire logistics industry and other fields, the role of forklifts is now becoming more and more important. We need forklifts anytime and anywhere. So what are the types of forklifts? The forklifts produced by Hifoune forklift supplier factories are mainly divided into diesel forklifts, Nissan engine lpg forklift and gasoline forklifts. In addition, we are also developing and designing electric forklifts. We are only committed to the design, production and sales of the entire forklift industry.


LPG&GASOLINEFORKLIFT FG45C/50C
Model   UNIT             FG45C                          FG50C
Specifications Power Unit LPG&Gasoline
Operator Type Driver/seat
Transimission BoxType Electronic hydraulictransmission
Rated Capacity kg 4500  5000
Load Center mm 600
Max.Lifting Height mm 3000
TyreType PneumaticTyre
Tyre Number   Front
  Rear
Tyre Size   Front 300-15-18PR
  Rear 7.00-12-12PR
  Performance Lifting Speed   Loaded mm/s 470
  Unloaded 520
Lowering Speed   Loaded mm/s 480
  Unloaded 450
Travelling Speed   Loaded km/h 19
  Unloaded 20
Max.Gradeability(Loaded) % 20
MastTilting Angle(Fwd/Bwd) deg 6/12
Free Lifting Height mm 150
Turning Radius mm 2765  2850
  Dimensions Overall Length (With Fork) mm 4200  4300
Overall Width mm 1490
Overhead Guard Height mm 2255
Fork Size(LxW×T) mm 1220×150×55
Mast Height (Fork lowered) mm 2245
Battery  (Voltage/Capacity) V/Ah 2×12/80
TruckWeight KG 6500  6900
Fuel Tank Capacity L 140
  Engine Engine model WG3800-GL-E3
Ratedpower KW/rpm 54.6
Speed at rated power r/min 2400
Max,torque N.m 273.1
Speed at max.torque r/min 1200
Displacement L 3.769
Emission Standards EURO Stage 5/EPA

How much do you know about forklifts?
For example,Hifoune forklift factory 2500kg nissan engine lpg forklift for sale.When the forks of the internal fuel forklift are loading goods, the distance between the two forks should be adjusted as needed to balance the load between the two forks, so that the goods on the shelf are not skewed. One side of the cargo should be affixed to the shelf, and the weight of the fork loaded should comply with the regulations of the curve sign in the middle of the loading to ensure the safety of the forklift operator.

Lpg Gasoline Forklift Specifications


Regardless of any type of forklift, as long as the forklift is working and when the forklift is lifting, in order to balance the weight of the entire forklift body, the back must be equipped with a corresponding counterweight to approach the rated lifting capacity. If the weight is too high, the load ratio of the forklift's rear axle under no-load conditions will be too high, while the load ratio of the front axle is too low, which seems unscientific and has certain advantages. Some forklift operators like to add weight to the forklift themselves, and there is a fuel tank full of liquid at the back.

2.5ton lpg forklift wholesale
When the forklift nissan 2.5 ton is fully loaded, it will show an uncoordinated state of small counterweight, relatively large front axle load, and relatively small rear axle load, but its advantages are: strong front wheel adhesion, better traction characteristics, sensitive steering, and tires when turning The pressure and the corresponding diameter are not too large; the disadvantage is: poor stability when fully loaded, and some accidents may occur when adjusting the direction. Reducing the operating volume of trucks also reduces the cost of the entire truck, which also lowers the price of forklift trucks on the market.

In order to effectively prevent, timely control and eliminate the emergence of sudden special equipment accidents that cause unnecessary harm to forklifts and forklift operators, after the forklift is designed and produced, the corresponding load capacity must be tested. The load capacity test meets the load capacity test before the start can be started.
