Gas/LPG forklift A series-2 ton

Gas/LPG forklift A series-2 ton

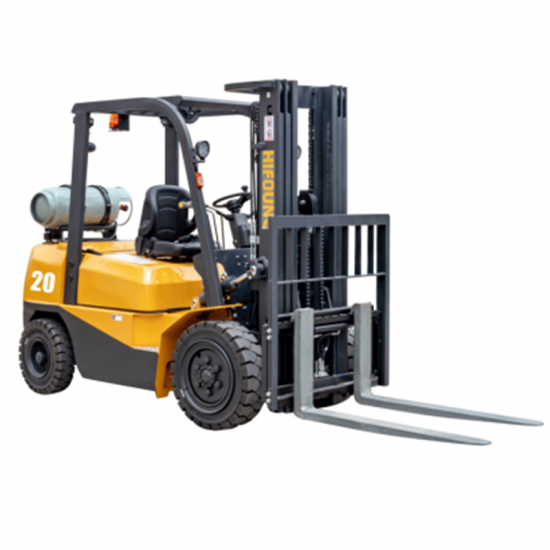

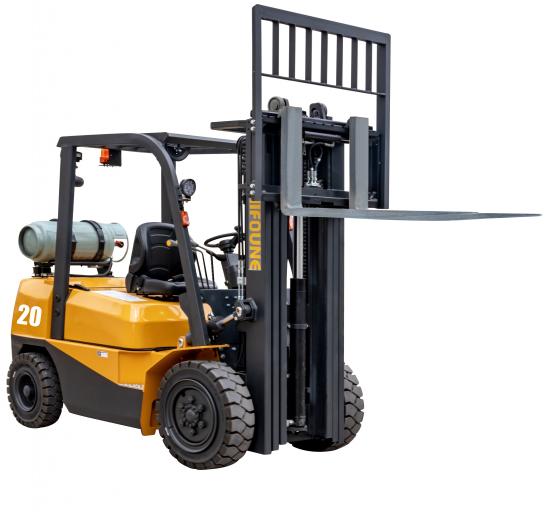

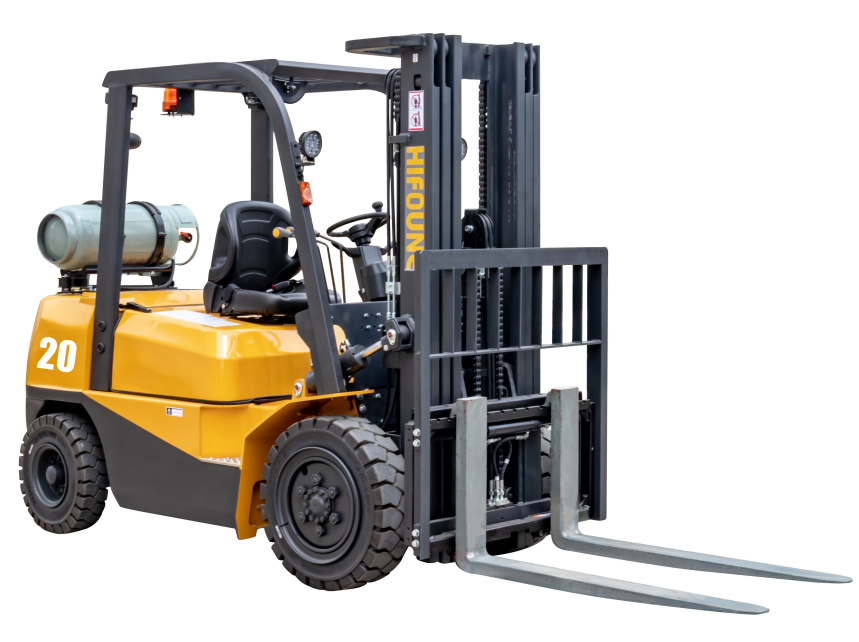

Hifoune FG20T is a forklift at 2ton capacity which powered by gas&LPG, color customizable, please contact us for more information.

  • Brand:

    HIFOUNE
  • Item No.:

    FG20
  • Payment:

    T/T LC
  • Product origin:

    China
  • Color:

    white/yellow/other
  • Shipping port:

    Xiamen
  • Lead Time:

    30-40 days
Product Details

Manufacturer Xiamen Hifoune Machinery Co.,Ltd
Model  FG20  FG25 FG30 FG35 FG40
Fuel   LPG&Gasoline
Operator Type   Driver/seat
Load Capacity   kg  2000   2500  3000  3500  4000
Load Center mm 500
Max.Lifting Height mm 3000
Free lifting height mm 150
Fork Size L*W*T mm 1220*122*40   1220*125*45  1220*125*50
Mast Tilting Angle Fwd/Bwd deg 6/12
Overall Length (without fork) mm 2605  2705  2760  2820
Overall Width mm 1150  1240  1300
Mast Height(Fork Lowered) mm 2040  2140
Overhead Guard Height mm 2090  2100
Turning raduis (exterior) mm  2170   2240  2400  2560
Min.right angle stacking aisle width mm  2010   2230  2330  2360  2480
Travelling Speed (Loaded/Unloaded) km/h 17/19 19/20
Lifting Speed (Loaded/Unloaded) mm/s 650/710 630/690
Lowering Speed (Loaded/Unloaded) mm/s 480/450
Max.drawbar pull (Loaded) N 18
Max.Gradability(Loaded) % 21
Service brake (Operation/Control) Hydraulic-foot pedal
Parking brake (Operation/Control) Mechanical-hand lever
Battery (voltage/capacity) V/ah 12/80
Truck Weight   kg 3590   3810  4110  4410  4800
Weight distribution Loaded (Front/Rear) kg 4920/670 5615/695 6256/854 7040/870 7832/968
Weight distribution Unloaded (Front/Rear) kg 1615/1975 1715/2095 1850/2260 1985/2425 2160/2640
Tyre   Pneumatic Tire
Tyre Size (Front/Rear) 7.00-12-12PR/6.00-9-10PR 28*9-15-14PR/6.50- 0-10PR 250-15-16PR
6.50-10-14PR
Tyre Number (Front/Rear)  2/2
Front tread mm 970  1000
Rear tread mm 970
Engine model KUBOTA     WG2503-GL-E3
Rated power KW/rpm 46.0/2700
Rated torque N-m/rpm 178.0/1400
Number of cylinder 4
Displacement L 2.491
Emission Standards EURO Stage 5
Fuel tank capacity L 70
Transmission box type Electronic hydraulic transmisson


Product Features


Small ton internal GAS/LPG forklift
Character:
1.Strong power system
2.Wide-view mast
3.Unique overhead guard design
4.Low non-slip pedal
5.Adjustable safety seat
6.Solid-state LCD digital meter
7.Eco-friendly design

Our Factory


    Our company. is located in the Xianganindustrial zone of Xiamen torch high tech Zone. It is dedicated to providing reliable and efficient material handling equipment and solutions for customers. It is a professional company integrating R & D, manufacturing, sales and service. The company's main products include a full range of internal combustion counterbalanced forklift trucks, electric counterbalance forklift trucks, and electric warehouse equipments.



    We not only aim to provide excellent products to customers in our full range of products, but also provide excellent service to customers in all links.



Certifications



FAQ

Q. Why choose HIFOUNE?
A. We are a professional forklift manufacturer and supplier in Xiamen of china with more than 20 years exported experience.Most of our staff are from XGMA machinery.

Q.What are our advantages compared with other manufactures/factories?
A.Carefully select regular manufacturers for supporting spare parts, like engines, bridge,transmissions, and many parts designed and produced by ourselves. Our C series forklift adopt  technology, most of parts are compitible with  forklift, but have cheaper price.


Q. Which payment terms can we accept?
A. Normally we can work on T/T or L/C.
A.1) On T/T term, 30% payment is required in advance for production, 70% balance shall be paid before delivery or againes the copy of original B/L for old long cooperation clients.
A.2) On L/C term, 100% irrevocable LC at sight without "soft clauses" can be accepted.

Q. Can we provide OEM SERVICE?
A. HIFOUNE can provide customized products according to customers' requirements, both OEM and ODM are acceptable.
