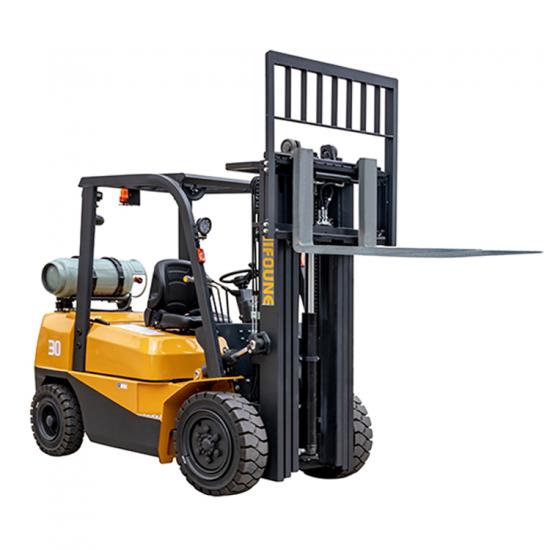

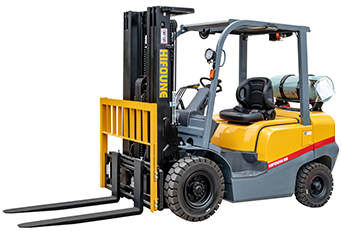

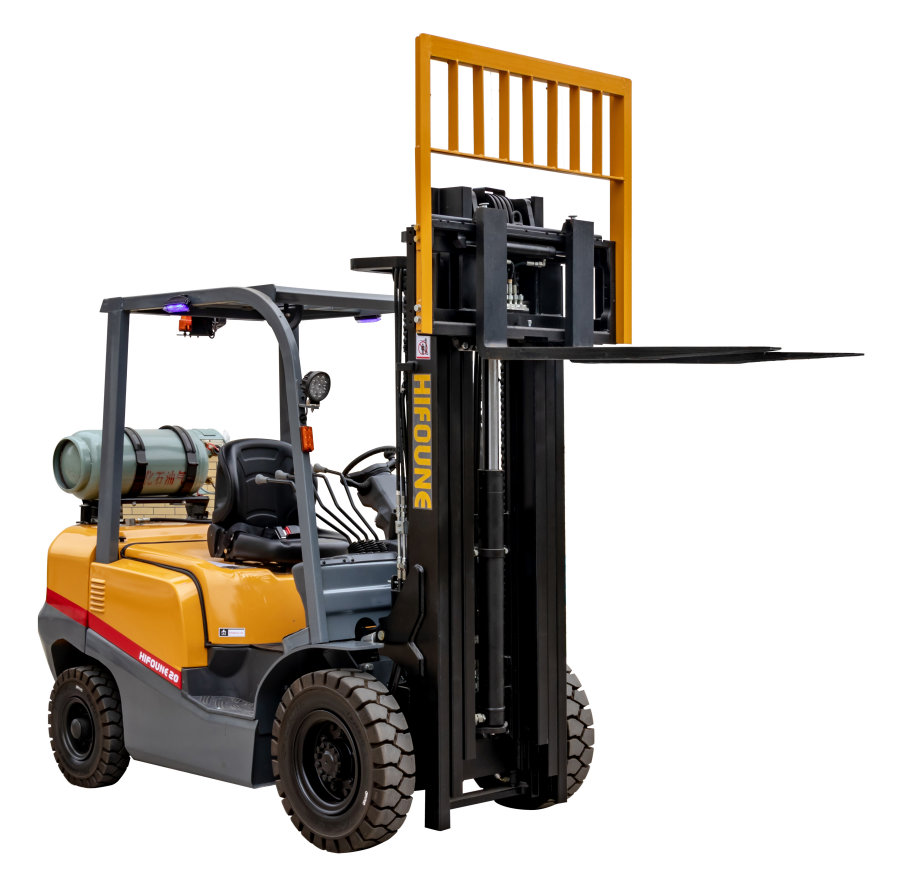

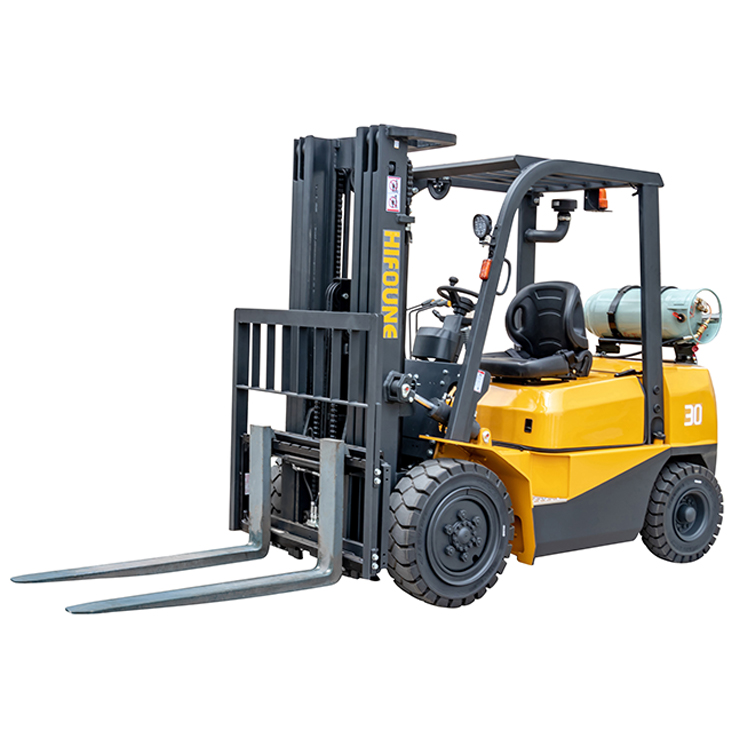

Hifoune FG20T is a forklift at 2ton capacity which powered by gas&LPG, color customizable, please contact us for more information.
Brand:
HIFOUNEItem No.:
FG20Payment:
T/T LCProduct origin:
ChinaColor:
white/yellow/otherShipping port:
XiamenLead Time:
30-40 days
Manufacturer | Xiamen Hifoune Machinery Co.,Ltd | |||||
Model | FG20 | FG25 | FG30 | FG35 | FG40 | |
Fuel | LPG&Gasoline | |||||
Operator Type | Driver/seat | |||||
Load Capacity | kg | 2000 | 2500 | 3000 | 3500 | 4000 |
Load Center | mm | 500 | ||||
Max.Lifting Height | mm | 3000 | ||||
Free lifting height | mm | 150 | ||||
Fork Size L*W*T | mm | 1220*122*40 | 1220*125*45 | 1220*125*50 | ||
Mast Tilting Angle Fwd/Bwd | deg | 6/12 | ||||
Overall Length (without fork) | mm | 2605 | 2705 | 2760 | 2820 | |
Overall Width | mm | 1150 | 1240 | 1300 | ||
Mast Height(Fork Lowered) | mm | 2040 | 2140 | |||
Overhead Guard Height | mm | 2090 | 2100 | |||
Turning raduis (exterior) | mm | 2170 | 2240 | 2400 | 2560 | |
Min.right angle stacking aisle width | mm | 2010 | 2230 | 2330 | 2360 | 2480 |
Travelling Speed (Loaded/Unloaded) | km/h | 17/19 | 19/20 | |||
Lifting Speed (Loaded/Unloaded) | mm/s | 650/710 | 630/690 | |||
Lowering Speed (Loaded/Unloaded) | mm/s | 480/450 | ||||
Max.drawbar pull (Loaded) | N | 18 | ||||
Max.Gradability(Loaded) | % | 21 | ||||
Service brake (Operation/Control) | Hydraulic-foot pedal | |||||
Parking brake (Operation/Control) | Mechanical-hand lever | |||||
Battery (voltage/capacity) | V/ah | 12/80 | ||||
Truck Weight | kg | 3590 | 3810 | 4110 | 4410 | 4800 |
Weight distribution Loaded (Front/Rear) | kg | 4920/670 | 5615/695 | 6256/854 | 7040/870 | 7832/968 |
Weight distribution Unloaded (Front/Rear) | kg | 1615/1975 | 1715/2095 | 1850/2260 | 1985/2425 | 2160/2640 |
Tyre | Pneumatic Tire | |||||
Tyre Size (Front/Rear) | 7.00-12-12PR/6.00-9-10PR | 28*9-15-14PR/6.50- | 0-10PR |
250-15-16PR 6.50-10-14PR |
||
Tyre Number (Front/Rear) | 2/2 | |||||
Front tread | mm | 970 | 1000 | |||
Rear tread | mm | 970 | ||||
Engine model | KUBOTA WG2503-GL-E3 | |||||
Rated power | KW/rpm | 46.0/2700 | ||||
Rated torque | N-m/rpm | 178.0/1400 | ||||
Number of cylinder | 4 | |||||
Displacement | L | 2.491 | ||||
Emission Standards | EURO Stage 5 | |||||
Fuel tank capacity | L | 70 | ||||
Transmission box type | Electronic hydraulic transmisson |
Product Features
Small ton internal GAS/LPG forklift
Character:
1.Strong power system
2.Wide-view mast
3.Unique overhead guard design
4.Low non-slip pedal
5.Adjustable safety seat
6.Solid-state LCD digital meter
7.Eco-friendly design
Our Factory
Our company. is located in the Xianganindustrial zone of Xiamen torch high tech Zone. It is dedicated to providing reliable and efficient material handling equipment and solutions for customers. It is a professional company integrating R & D, manufacturing, sales and service. The company's main products include a full range of internal combustion counterbalanced forklift trucks, electric counterbalance forklift trucks, and electric warehouse equipments.
We not only aim to provide excellent products to customers in our full range of products, but also provide excellent service to customers in all links.
Q. Why choose HIFOUNE?
A. We are a professional forklift manufacturer and supplier in Xiamen of china with more than 20 years exported experience.Most of our staff are from XGMA machinery.
Q.What are our advantages compared with other manufactures/factories?
A.Carefully select regular manufacturers for supporting spare parts, like engines, bridge,transmissions, and many parts designed and produced by ourselves. Our C series forklift adopt technology, most of parts are compitible with forklift, but have cheaper price.
Q. Which payment terms can we accept?
A. Normally we can work on T/T or L/C.
A.1) On T/T term, 30% payment is required in advance for production, 70% balance shall be paid before delivery or againes the copy of original B/L for old long cooperation clients.
A.2) On L/C term, 100% irrevocable LC at sight without "soft clauses" can be accepted.
Q. Can we provide OEM SERVICE?
A. HIFOUNE can provide customized products according to customers' requirements, both OEM and ODM are acceptable.
Previous :
Gas/LPG forklift C series-3 tonNext :
Gas/LPG forklift A series-3 tonIf you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
