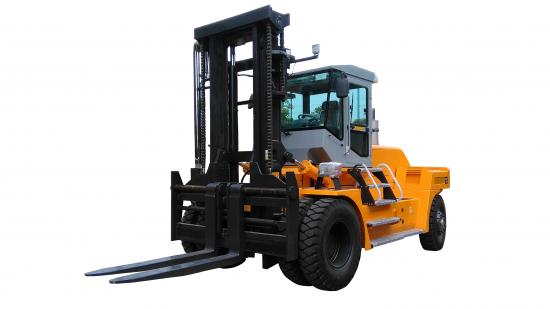

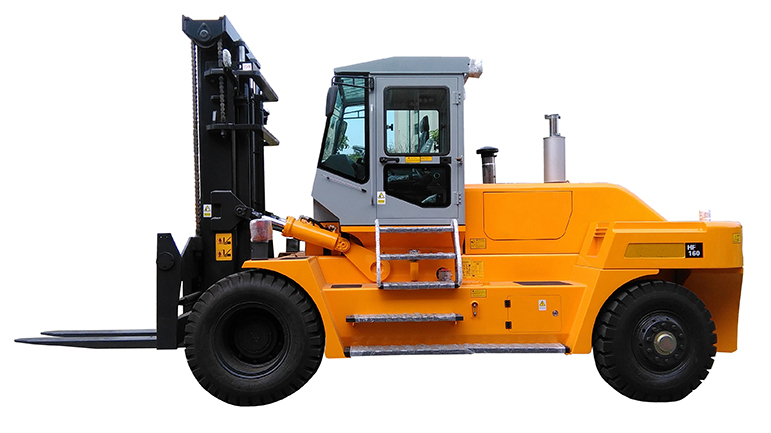

Heavy duty diesel forklift 16ton

1, adopt Cummins, Weichai, Yuchai turbocharging engine, powerful, energy conservation, environmental protection, satisfies the requirement of high efficiency operation.
2, use Hangchi, Sanchi planet type hydraulic power shift transmission, big traction in combined operating condition, the transmission system more reliable.
3, adopt double turbine hydraulic torque converter, stepless speed change, single lever control for the speed changing, easier for operation.
4, Variable speed control valve matched with neutral starter, the machine start more secure.
5, front axle adopt heavy duty type driving axle, enlarge size of axle housing, hub and bearing, spiral bevel gear and wheel planetary wheel deceleration increasing twist, steel structure bridge shell support, increase the load capacity and service life.
6, No spokes plate type rim, increase the bearing capacity of hub.
7, rear axle by transverse hydraulic cylinder type steering, steering axle has compact structure, transmission angle is 70.5 °, help to reduce the resistance and reduce tire wear and improve the driving comfort.
8, using four heavy caliper disc brake, thicken brake disc, the rear air tank, 18 times braking pressure strength ratio, heat dissipation faster, reliable and safe operation
9, hydraulic load sensing steering system, rear steering axle with small turning radius, flexible and light steering
10, adopt double pump confluence working hydraulic system, greatly reduce fuel consumption, energy consumption. Hydraulic system equipped with oil radiator and back pressure protection device, ensure the machine heat balance
11, using speed limit valve and pressure selector valve, reduce the hydraulic system impact, can lower the mast to the ground when engine flame out
12, cooperate with hercynian institute of Chinese Academy of Sciences "overall structure optimization scheme", verifies the stiffness and strength calculation, fatigue life forecast on the forklift, comprehensive finite element mechanics analysis, structure design optimization, ensure the security of the products use
12.1, adopt long wheelbase, box double beam frame, can provide good rigidity and strength, to ensure the high reliability of forklift truck chassis
12.2, inner and outer mast adopt roller operate, the door frame with roller, movable block energy structure, long service life of the mast, high reliability
12.3, mast lifting height can be up to 3 meters, high mast, low mast, standard mast and a variety of accessories can be fitteed according to customers’ requirements
12.4, adopted quick hitch shelf, change quickly. Hydraulic fork positioner, easy to adjust. Cascade high strength fork, more wear-resisting, can multiply service life
13, with massive deepen heavy forklift tire, rear steering axle can swing around the center, have good traction performance and passing performance.
14, matched with adjustable direction, airline seats, joystick control distributing valve and working device, flexible and convenient manipulation
15, using domestic high quality electrical components, maintenance-free battery, the wire resistance of flame retardant materials, reliable and durable. Cabin matched wiht fan, radios, air conditioner, reversing display, can match with weighting machine according to customers’ requirements.
16, the whole machine is beautiful and smooth. Luxury wide view cabin, along with the skylight, low noise, good sealing
17, domestication parts, standardization, cost-effective, parts commonality good easy procurement, daily maintenance is simple and quick.
18. widely used in airports, ports, docks, stations, warehouses and other big working intensity occasions for loading and unloading, stacking and short-distance transportation

    Our company. is located in the Xianganindustrial zone of Xiamen torch high tech Zone. It is dedicated to providing reliable and efficient material handling equipment and solutions for customers. It is a professional company integrating R & D, manufacturing, sales and service. The company's main products include a full range of internal combustion counterbalanced forklift trucks, electric counterbalance forklift trucks, and electric warehouse equipments.

    We not only aim to provide excellent products to customers in our full range of products, but also provide excellent service to customers in all links.

Q. Why choose HIFOUNE?
A. We are a professional forklift manufacturer and supplier in Xiamen of china with more than 20 years exported experience.Most of our staff are from XGMA machinery.

Q.What are our advantages compared with other manufactures/factories?
A.Carefully select regular manufacturers for supporting spare parts, like engines, bridge,transmissions, and many parts designed and produced by ourselves. Our C series forklift adopt TCM technology, most of parts are compitible with TCM forklift, but have cheaper price.

Q. Which payment terms can we accept?
A. Normally we can work on T/T or L/C.
A.1) On T/T term, 30% payment is required in advance for production, 70% balance shall be paid before delivery or againes the copy of original B/L for old long cooperation clients.
A.2) On L/C term, 100% irrevocable LC at sight without "soft clauses" can be accepted.

Q. Can we provide OEM SERVICE?
A. HIFOUNE can provide customized products according to customers' requirements, both OEM and ODM are acceptable.
