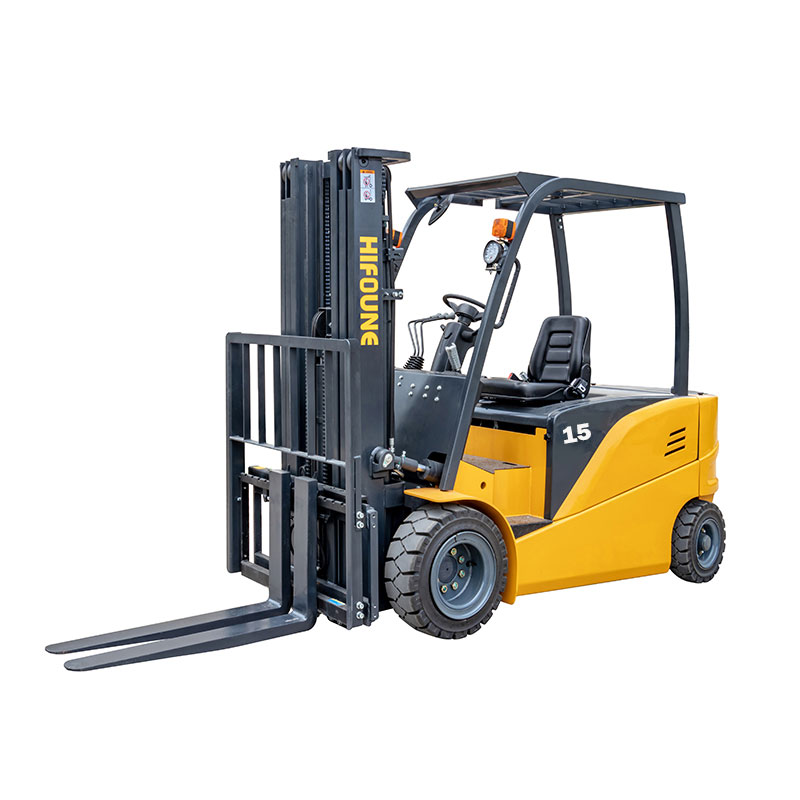

Electric forklift 1.5 ton

Hifoune FB15 is an electric forklift at 1.5ton capacity powered by batter, choosable at different tonnage

Brand:
HIFOUNE
Item No.:
FB15

Product Details

LEAD ACID BATTERY COUNTER BALANCE FORKLIFT FB15/18/20/25/30/35
Electric forklift parameters table
Content	No	Projects	Unit
Character	1	Brand		Hifoune	Hifoune	Hifoune	Hifoune	Hifoune	Hifoune
	2	Model		FB15	FB18	FB20	FB25	FB30	FB35
	3	Power mode		Lead-acid battery	Lead-acid battery	Lead-acid battery	Lead-acid battery	Lead-acid battery	Lead-ecid battery
	4	Drivingmode		Seat	Seat	Seat	Seat	Seat	Seat
	5	Load capacity	Kg	500	1750	2000	2500	3000	3500
	6	Load contor		500	500	500	500	500	500
	7	Max.litingheilght	mm	3000	3000	3000	3000	3000	3000
Weight	8	Self-weight	kg	2940	3090	4050	4250	5000	5450
Weight	9	Battery weight	kg	710	760	960	960	1370	1370
Size	10	Front overhang	mm	406	411	470	470	475	480
	11	Whoolbaso	mm	1380	1380	1500	1500	1680	1680
	12	Mast titing angle(fhwd/bwd		5/10	5/10	6/12	6/12	6/12	6/12
	13	Mast height(fork lowered)	mm	1976	1976	2140	2140	2100	2180
	14	Froe lifing height	mm	45	145	140	140	145	150
	15	Max.littng height	mm	3955	3955	4129	4129	4235	4235
	16	Overhead guardheight	mm	2130	2130	2140	2140	2150	2150
	17	Driver'sseat height	mm	045	1045	1110	1110	1130	1130
	18	Overall length(without tlork)	mm	2098	2103	2369	2369	2550	2550
	19	Overall width	mm	1120	1138	1168	1168	1220	1220
	20	Fork sizethickness'width"length	mm	920×100×35	920×100×35	1070×122×40	1070×122×40	1070×125×45	1070×125×50
	21	Min.groundclearance (mast)		85	85	105	105	105	105
	22	Min.ground clearanoe (middleof chassis)	mm	110	110	125	125	125	125
	23	Mn.tuming radlus	mm	1900	190D	2070	2070	2210	2290
Tires	24	Tre type		pneumatic tre	pneumatic tre	pneumate tire	pneumate tire	pneumatc tre	solld tre
	25	Tire number(X=drivingtire)		2×/2	2×/2	2×/2	2×/2	2×/2	2×/2
	26	Front tire		6.00-9-10PR	21x8-9-14PR	7.00-12-12PR	7.00-12-12PR	2BX9-15-14PR	28X9-15
	27	Reartire		5.00-8-10PR	5.00-8-10PR	18X7-8-14Pg	18X7-8-14PR	18X7-8-14PR	18X7-8
	28	Trawelling spoed (loadodlunloadod)	Km/h	14/14	14/14	13/15	13/15	13/15	13/15
	29	Lifing speed(loaded/unloaded)	mmls	290/440	285/440	270/460	260/460	275/420	250/360
Performance	30	Max.drawbarpull(loadlunloaded)	kN	00/9	11/9.5	14.1/13.4	13.5/12.5	15.7/16.2	15.515.0
Performance	31	Max gradeability(loadodiunloadod)	%	12/13	12/13	15/16	15/15	15/15	15/15
System	32	Trawelling motor power	KW	8AC	8AC	111A0	11.1AC	16.6AC	16.6AC
	33	Working motor power	KW	8.2DC(8.6AC)	8.2DC(8.6AC)	10.5DC(12AC)	10.5DC(12AC)	10DC(13.5AC)	100C(13.5AC)
	34	Battory (voltago/capaciy)	VAh	48/420	48/420	48/560	48/560	80/500	80/500
	35	Standard charger spedfications(output)	VA	48/55	48/55	48/80	48/80	80/70	80/70
The standard model data would vary according to theconfiguration

Product Features

Counterbalance 1.5-3.0 ton Electric Forklift

Main Features:

1.1.5 ton electric forklift use Advanced Curtis controller, more stable and safer.

2.Maintenance-free AC drive system makes the vehicle react more quickly and accurately. It is equipped with a full AC system.

3.Wide-view gantry design to improve work efficiency.

4.The whole electric hand forklift layout is more reasonable, with low center of gravity, small size and low self-weight.

Our Factory

Our company. is located in the Xiangan industrial zone of Xiamen torch high tech Zone. It is dedicated to providing reliable and efficient material handling equipment and solutions for customers. It is a professional company integrating R & D, manufacturing, sales and service. The company's main products include a full range of internal combustion counterbalanced forklift trucks, electric counterbalance forklift trucks, and electric warehouse equipments.

We not only aim to provide excellent products to customers in our full range of products, but also provide excellent service to customers in all links.

Certifications

FAQ

Q. Why choose HIFOUNE?
A. We are a professional forklift manufacturer and supplier in Xiamen of china with more than 20 years exported experience.Most of our staff are from XGMA machinery.

Q.What are our advantages compared with other manufactures/factories?
A.Carefully select regular manufacturers for supporting spare parts, like engines, bridge,transmissions, and many parts designed and produced by ourselves. Our C series forklift adopt TCM technology, most of parts are compitible with TCM forklift, but have cheaper price.

Q. Which payment terms can we accept?
A. Normally we can work on T/T or L/C.
A.1) On T/T term, 30% payment is required in advance for production, 70% balance shall be paid before delivery or againes the copy of original B/L for old long cooperation clients.
A.2) On L/C term, 100% irrevocable LC at sight without "soft clauses" can be accepted.

Q. Can we provide OEM SERVICE?
A. HIFOUNE can provide customized products according to customers' requirements, both OEM and ODM are acceptable.
