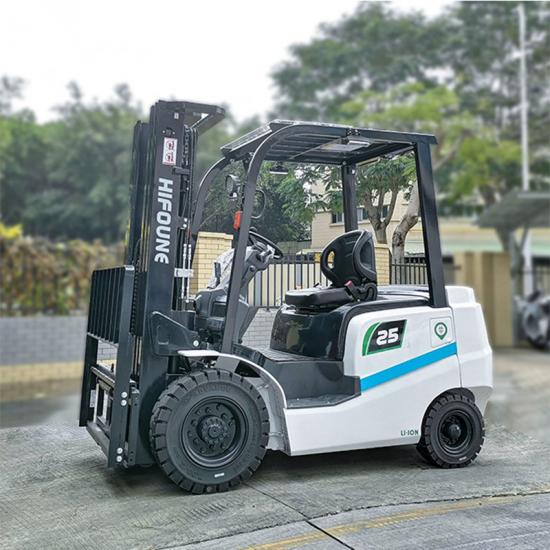

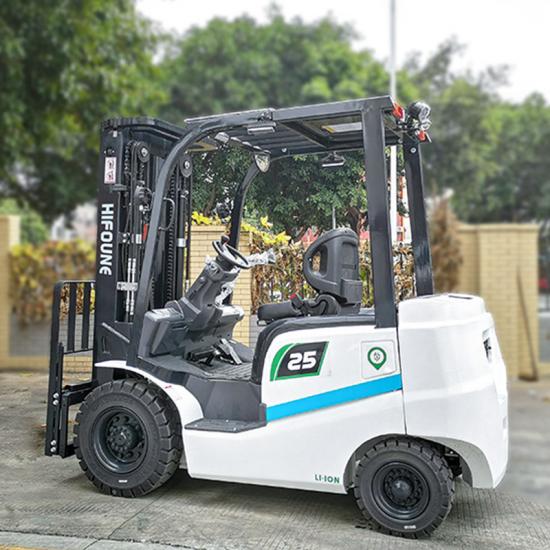

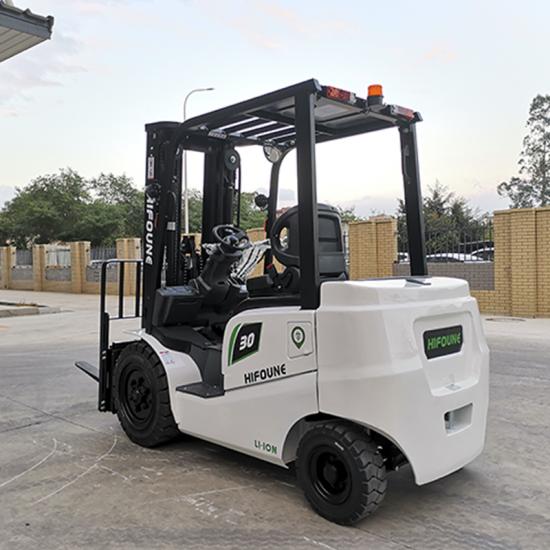

2.5 Ton Empilhadeira Electric Forklift Lithium Battery

Hifoune FB25 is an electric forklift at 2.5ton capacity powered by batter, choosable at different tonnage

Brand:
HIFOUNE
Item No.:
FB25

Product Details

LITHIUM BATTERY COUNTER BALANCED FORKLIFT(Air cooling)
Electric forklift parameters table
Content	No.	Projects	Unit
Character	1	Brand		Hifoune	Hifoune	Hifoune	Hifoune
	2	Model		FBL20	FBL25	FBL30	FBL35
	3	Powermode		Lithium Iron Phosphatebattery
	4	Driving mode		Seat	Seat	Seat	Seat
	5	Load capacity	Q(Kg)	2000	2500	3000	3500
	6	Load center	C(mm)	500	500	500	500
	7	Max.lifting height	h4(mm)	3000	3000	3000	3000
Weight	8	Self-weight	kg	3650	3810	4110	4410
Weight	9	Battery weight	kg	154	154	180	180
Size	10	Frontoverhang	x(mm)	470	470	475	480
	11	Wheelbase	y(mm)	1550	1550	1650	1650
	12	Mast tilting angle(fwd/bwd)	a/β()	6/12	6/12	6/12	6/12
	13	Mast height(fork lowered)	mm	2080	2080	2140	2140
	14	Free lifting height	mm	140	140	145	145
	15	Max lifting height	mm	4040	4040	4135	4135
	16	Overhead guard height	mm	2125	2125	2150	2150
	17	Driver's seat height	mm	1075	1075	1110	1110
	18	Overalllength(withoutfork)	h1(mm)	2420	2450	2540	2585
	19	Overall width	b1(mm)	1160	1160	1220	1220
	20	Fork size:thicknesswidthlength	mm	1220X122X40	1220X122X40	1220X125X45	1220X125X50
	21	Min.ground clearance(mast)	m1(mm)	130	130	140	140
	22	Min.ground clearance(middle of chassis)	mm	140	140	150	150
	23	Min.turningradius	Wa(mm)	2250	2250	2350	2395
Tires	24	Tire type		Pneumatic tire	Pneumatic tire	Pneumatic tire	Pneumatictire/Solid tire
	25	Tire number(X=driving tire)		2×/2	2×/2	2×/2	2×/2
	26	Fronttire		7.00-12-12PR	7.00-12-12PR	28X9-15-14PR	28X9-15-14PR
	27	Rear tire		18X7-8-14PR	18X7-8-14PR	18X7-8-14PR	18X7-8
Performance	28	Travelling speed(loaded/unloaded)	Km/h	16/16	16/16	15/15	15/15
	29	Lifting speed(loaded/unloaded	mm/s	300/440	300/440	320/460	310/460
	30	Max.drawbarpull(load/unloaded)	kN	22/21	21.5/20.5	20.5/19.5	19.5/18
	31	Max.gradeability(loaded/unloaded)	%	15/15	15/15	15/15	15/15
System	32	Powerunit model		35G2	35G2	35G2	35G2
	33	Powerunitcooling form		Air cooling	Air cooling	Aircooling	Air cooling
	34	Travelling motorpower	KW	15.0AC	15.0AC	15.0AC	15.0AC
	35	Working motor power	KW	15.0AC	15.0AC	15.0AC	15.0AC
	36	Battery(voltage/capacity)	V/Ah	115.2/125	115.2/125	115.2/173	115.2/173
	37	Standard charger specifications(output)	VA	115/50	115/50	115/100	115/100
The standard model data would vary according to the configuration.

LITHIUM BATTERY COUNTER BALANCED FORKLIFT(liquid cooling)
Electric forklift parameters table
Content	No.	Projects	Unit
Character	1	Brand		Hifoune	Hifoune	Hifoune	Hifoune	Hifoune
	2	Model		FBL20S	FBL25S	FBL30S	FBL35S	FBL40S
	3	Power mode		Lithium Iron Phosphate battery
	4	Driving mode		Seat	Seat	Seat	Seat	Seat
	5	Load capacity	Q(Kg)	2000	2500	3000	3500	4000
	6	Load center	C(mm)	500	500	500	500	500
	7	Max.lfting height	h4(mm)	3000	3000	3000	3000	3000
Weight	8	Self-weight	kg	3650	3810	4110	4410	4800
Weight	9	Battery weight	kg	154	154	180	180	305
Size	10	Front overhang	x(mm)	470	470	475	480	490
	11	Wheelbase	y(mm)	1550	1550	1650	1650	1750
	12	Mast tilting angle (fwd/bwd	a/β()	6/12	6/12	6/12	6/12	6/12
	13	Mast height(fork lowered)	mm	2080	2080	2140	2140	2180
	14	Free lifting height	mm	140	140	145	145	150
	15	Max.lfting height	mm	4040	4040	4135	4135	4240
	16	Overhead guardheight	mm	2125	2125	2150	2150	2165
	17	Driver's seat height	mm	1075	1075	1110	1110	1125
	18	Overal length(withoutfork)	h1(mm)	2420	2450	2540	2585	2665
	19	Overall width	b1(mm)	1160	1160	1220	1220	1280
	20	Fork size:thicknesswidthlength	mm	1220X122X40	1220X122X40	1220X125X45	1220X125X50	1220X125X50
	21	Min.gound clearance(mast)	m1(mm)	130	130	140	140	145
	22	Min.ground clearance(middle ofchassis)	mm	140	140	150	150	150
	23	Min.turning radius	Wa(mm)	2250	2250	2350	2395	2460
Tires	24	Tire type		pneumatic tire	pneumatic tire	pneumatic tire	pneumatic tire/Solid tire	pneumatic tire/Solidtire
	25	Tire number (X=driving tire)		2×/2	2x/2	2×/2	2×/2	2x/2
	26	Fronttire		7.00-12-12PR	7.00-12-12PR	28X9-15-14PR	28X9-15-14PR	250-15-16PR
	27	Rear tire		18X7-8-14PR	18X7-8-14PR	18X7-8-14PR	18X7-8	18X7-8
Performance	28	Travelling speed(loaded/unloaded	Km/h	23/23	23/23	22/23	22/23	20/20
	29	Lifting speed(loaded/unloaded)	mm/s	450/440	450/440	440/460	440/460	400/460
	30	Max.drawbar pull(load/unloaded)	kN	24/25	24/25	25/25	25/25	26/26
	31	Max gradeabiity (loaded/unloaded)	%	20/20	20/20	20/20	20/20	20/20
System	32	Power unit model		35S2	35S2	35S2	35S2	3582
	33	Power unit cooling form		liguid cooling	iquid cooling	iguid cooling	liguid cooling	iquid cooling
	34	Travelling motor power	KW	20.0AC	20.0AC	20.0AC	20.0AC	20.0AC
	35	Working motor power	KW	20.0AC	20.0AC	20.0AC	20.0AC	20.0AC
	36	Batery (voltage/capacity)	V/Ah	153.6/165	153.6/165	153.6/165	153.6/165	153.6/230
	37	Standard charger specifications(output)	V/A	150/100	150/100	150/100	150/100	150/100
The standard model data would vary according to theconfiguration.

Lithium battery forklifts are forklift equipment that use lithium batteries as their energy supply. They have significant performance, efficiency and environmental advantages over traditional fuel or lead acid battery forklifts. Below are some detailed information about lithium battery forklifts:

Efficient Performance: Lithium battery forklifts typically have higher power output and acceleration, making them more efficient in handling, lifting and traveling. They provide a stable power output, allowing operators to complete tasks faster and more efficiently.

Longer life: Li-ion batteries have a longer service life and a greater number of cycles, and can withstand more charge/discharge cycles without loss of performance. This means that lithium battery forklifts can run longer and maintain consistent performance throughout their lifespan.

Fast Charging: Li-Ion forklifts support fast charging and can typically complete the charging process in a short period of time. This reduces downtime and increases productivity. In contrast, other types of batteries take longer to charge and require more time to complete the charging process.

Reduced Maintenance Costs: Lithium battery forklifts require less maintenance than traditional lead acid battery forklifts. Lithium batteries do not have liquid electrolytes that need to be checked and replenished on a regular basis, and there is no need to maintain corrosion and cleaning, thus reducing maintenance costs and maintenance time.

Environmentally Sustainable: Lithium batteries are a clean energy source, producing no tailpipe emissions or acid spills. They reduce air pollution and environmental impact compared to fuel forklifts. Lithium batteries can also be recycled, reducing the consumption of resources and meeting the requirements of sustainable development.

In addition, lithium battery forklifts are usually designed to be lighter, offering better handling and maneuverability. They also have some innovative features such as intelligent management systems, remote monitoring and data analytics to improve operational efficiency and safety.

It is important to note that the selection of lithium battery forklifts needs to be evaluated based on specific needs and application scenarios to ensure optimal performance and adaptability.
