In fact, if you want to smoothly extend the service life of the internal combustion forklift, the internal combustion forklift must be maintained after use. Therefore, the inspection work before use and the daily maintenance work are completed, and the service life of the internal combustion forklift will naturally be reduced. It will be extended.
Brand:
HIFOUNEItem No.:
FD80Product origin:
Xiamen,Fujian,ChinaColor:
White, Orange, RedShipping port:
Xiamen PortLead Time:
15 Days

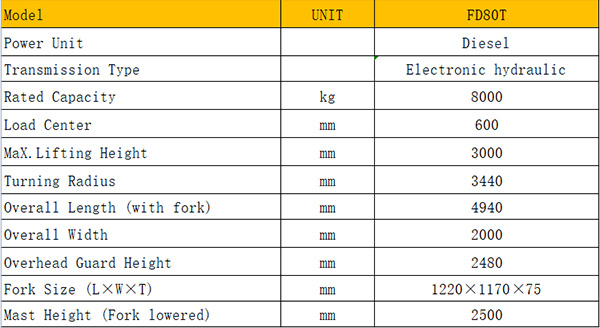

DIESEL FORKLIFT FD50/60/70/80 | |||||||
Model | UNIT | FD50 | FD60 | FD70 | FD80 | ||
Specifications | Power Unit | Diesel | Diesel | Diesel | Diesel | ||
Operator Type | Driver/seat | ||||||
Transimission Box Type | Electronic hydraulic transmission | ||||||
Rated Capacity | kg | 5000 | 6000 | 7000 | 8000 | ||
Load Center | mm | 600 | 600 | 600 | 600 | ||
Max.Lifting Height | mm | 3000 | 3000 | 3000 | 3000 | ||
Tyre Type | Pneumatic Tyre | ||||||
Tyre Number | Front | 4 | 4 | 4 | 4 | ||
Rear | 2 | 2 | 2 | 2 | |||
Tyre Size | Front | 8.25-15-14PR | 8.25-15-14PR | 8.25-15-14PR | 8.25-15-14PR | ||
Rear | 8.25-15-14PR | 8.25-15-14PR | 8.25-15-14PR | 8.25-15-14PR | |||
Performance | LiftingSpeed | Loaded | mm/s | 460 | 460 | 460 | 440 |
Unloaded | 500 | 500 | 500 | 500 | |||
Lowering Speed | Loaded | mm/s | 500 | 500 | 500 | 500 | |
Unloaded | 450 | 450 | 450 | 450 | |||
TravellingSpeed | Loaded | km/h | 25 | 25 | 25 | 25 | |
Unloaded | 30 | 30 | 30 | 30 | |||
Max.Gradeability(Loaded) | % | 33 | 30 | 27 | 27 | ||
Max.Drawbar Pull(Loaded) | kg | 5500 | 5500 | 5500 | 5500 | ||
Mast Tilting Angle (Fwd/Bwd) | deg | 6/12 | 6/12 | 6/12 | 6/12 | ||
Free Lifting Height | mm | 145 | 145 | 145 | 145 | ||
Turning Radius | mm | 3250 | 3300 | 3370 | 3480 | ||
Dimensions | Overall Length (with fork) | mm | 4470 | 4620 | 4870 | 5020 | |
Overall Width | mm | 2000 | 2000 | 2000 | 2000 | ||
Oyerhead Guard Height | mm | 2480 | 2480 | 2480 | 2480 | ||
Fork Size(LxW×T | mm | 1220×150×55 | 1220×150×60 | 1220×150×65 | 1220×170×75 | ||
Mast Height(Fork lowered) | mm | 2500 | 2500 | 2500 | 2500 | ||
Battery (Voltage/Capacity) | V/Ah | 2×12/80 | 2×12/80 | 2×12/80 | 2×12/80 | ||
TruckWeight | KG | 7900 | 8550 | 9200 | 10200 | ||
Fuel Tank Capacity | L | 140 | 140 | 140 | 145 | ||
Engine | Brand | ISUZU | MITSUBISHI | ||||
Model | 6BG1 | 56S-T | |||||
Rated Power | kw/rpm | 82.4/2000 | 65.5/2250 | ||||
Rated Torque | n-m/pm | 416.8/1500 | 303/1700 | ||||
Number Of Cylinder | 6 | 6 | |||||
Displacement | 6.494 | 4.996 |
